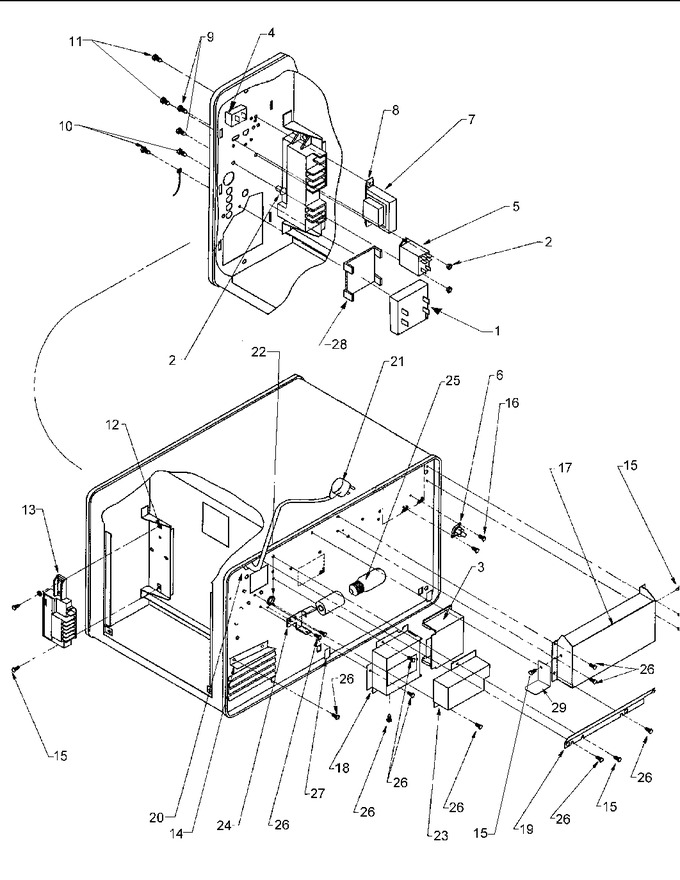

01 - Cavity
02 - Control Panel
03 - Door
04 - Front & Back Panels
05 - Stirrer/miscellaneous
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10791801 | Board, P.c. |
|
- | |||||
| 2 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 3 | 41028P01 | Cover Light |
|
- | |||||
| 4 | 12QBP0508 | Kit, Triac Assy (Replaces: R0157373) |
|
$ 27.14 | |||||
| 5 | 38806P04 | Relay |
|
- | |||||
| 6 | 1751172501 | Protector Thermal 25amp Cavity |
|
- | |||||
| 7 | 41746P02 | L.v. Xfmr |
|
- | |||||
| 8 | 40558P01 | Clip |
|
- | |||||
| 9 | 5043-K | No.6 Hex Hd Machine Screw(25) |
|
- | |||||
| 10 | M1D590 | Screw (25) |
|
- | |||||
| 11 | 5027-ZZ | Screw |
|
- | |||||
| 12 | 42365P01 | U-clip |
|
- | |||||
| 13 | R0163285 | Switch, Interlock |
|
- | |||||
| 14 | 41624P01 | Dftr Drip |
|
- | |||||
| 15 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 7.04 | ||||
| 16 | M0251717 | Screw |
|
- | |||||
| 17 | 10785301 | Baffle, Intrusion |
|
- | |||||
| 18 | 10822201 | Cover, Component |
|
- | |||||
| 19 | 10826901 | Channel, Wire |
|
- | |||||
| 20 | M0370009 | Relief- Strain |
|
- | |||||
| 21 | 1731300301 | Cord, Power |
|
- | |||||
| 22 | A3293502 | Bushing |
|
- | |||||
| 23 | 41627P01 | Cover-rear Vent |
|
- | |||||
| 24 | 4180031301 | Ass`y, Light Socket |
|
- | |||||
| 25 | 40407P01 | Bulb-light |
|
- | |||||
| 26 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 7.05 | ||||
| 27 | 6040516002 | Tape Alum |
|
- | |||||
| 28 | 10741801 | Bracket, P.c. Board |
|
- |
