View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control/antenna & Basepan Assembly
02 - Door Assy
03 - Electrical Components
04 - Light

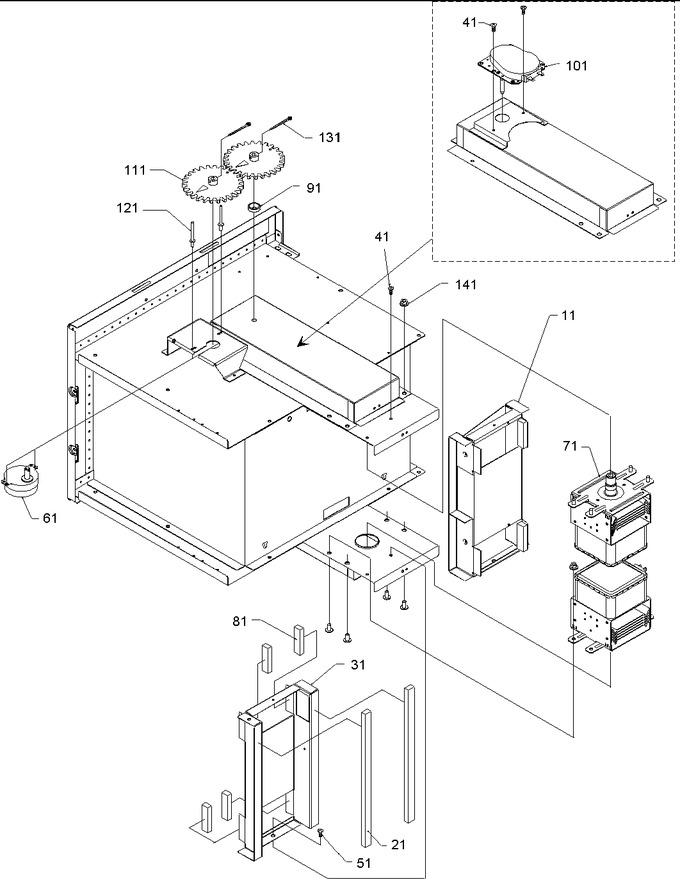

05 - Magnetron/stirrer Motor
06 - Splash Shield/blower
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | R0150161 | Assy, Duct |
|
- | |||||
| 21 | 10966605 | Gasket, Neoprene (1 Roll) |
|
- | |||||
| 31 | 12107402 | Duct-mag Outlet |
|
- | |||||
| 41 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 51 | M0251028 | Screw, T.c. |
|
- | |||||
| 71 | D7831007 | Magnetron-t |
|
- | |||||
| 81 | 10966605 | Gasket, Neoprene (1 Roll) |
|
- | |||||
| 101 | R0150197 | Motor-stirrer (230v) |
|
- | |||||
| 141 | 5014-J | Ia 5mm Flange Whiz-lk Nut (25) |
|
- |
