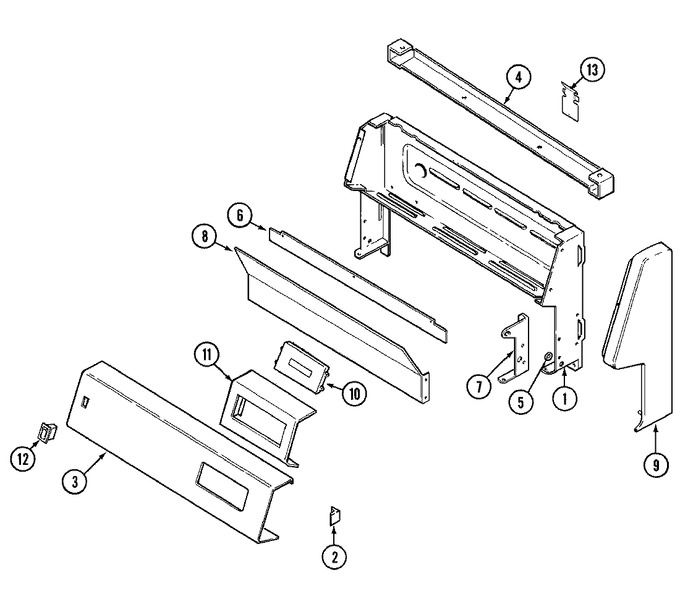

01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 1 | 74002162 | Housing, Control Panel | 10 |
|
- | ||||
| 2 | 8010P083-60 | Spacer | 10 |
|
- | ||||
| 2 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 3 | 74002681 | Panel, Control (blk) | 10 |
|
- | ||||
| 3 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 10 |
|
Immediately | $ 6.47 | |||
| 4 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 4 | 4001F064-51 | Extension, Control Panel | 10 |
|
- | ||||
| 5 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 10 |
|
$ 7.68 | ||||
| 6 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | 8036P003-60 | Shield, Sight | 10 |
|
- | ||||
| 7 | 3807F454-51 | Support, Main Top (lt) | 10 |
|
- | ||||
| 7 | 3807F453-51 | Support, Main Top (rt) | 10 |
|
- | ||||
| 7 | 8114P348-60 | Cover, Hinge Support | 10 |
|
- | ||||
| 7 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | 3604F188-09 | Shield, Flue | 10 |
|
- | ||||
| 8 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 7726P046-60 | End Cap (rt-blk) | 10 |
|
- | ||||
| 9 | 7726P050-60 | End Cap (lt-blk) | 10 |
|
- | ||||
| 10 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 10 | 74002682 | Clock | 10 |
|
- | ||||
| 11 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 10 |
|
Immediately | $ 6.47 | |||
| 11 | 74002618 | Bracket, Control Panel | 10 |
|
- | ||||
| 12 | 7403P067-60 | Switch, Rocker (blk) | 10 |
|
$ 91.35 | ||||
| 13 | 4005F448-45 | Cover, Wire | 10 |
|
- | ||||
| 13 | 5180D138-60 | Harness, Control Panel | 10 |
|
- | ||||
| 14 | 74002224 | Manual, Use & Care | 10 |
|
- | ||||
| 15 | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- |
