01 - Blower Assembly
02 - Burner Box Assembly

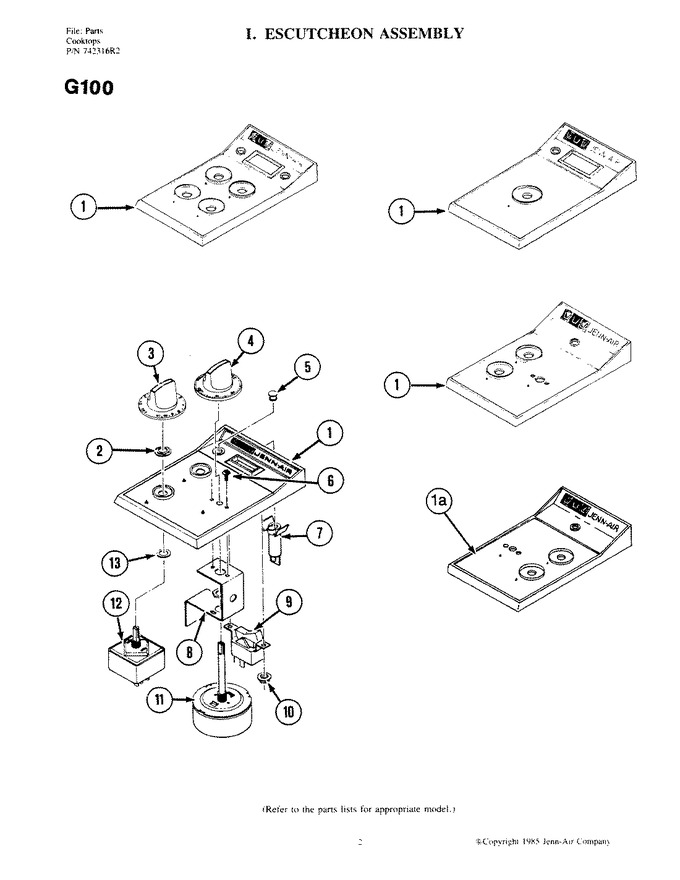

03 - Escutcheon Assembly
04 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 707986 | Decal | 1 |
|
- | ||||
| 1 | 701598 | Escutcheon (new W/cast Logo) | 1 |
|
- | ||||
| 2 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 3 | WPY700854 | Knob, Switch (Replaces: Y700854) | 1 |
|
Immediately | $ 23.22 | |||
| 4 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 5 | WPY700631 | Lens, Pilot Light (Replaces: Y700631) | 1 |
|
$ 5.09 | ||||
| 6 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 7 | 715396 | Pilot Light & Lens | 1 |
|
- | ||||
| 8 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 9 | 715397 | Switch, Fan | 1 |
|
- | ||||
| 10 | 7103P166-60 | Palnut (Replaces: 715500) | 1 |
|
$ 15.91 | ||||
| 11 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 12 | 700855K | Switch, Infinite (Replaces: Y700855) | 1 |
|
Immediately | $ 121.91 | |||
| 13 | Y700833 | O Ring | 1 |
|
- | ||||
| 13 | DE81-04438A | Wire Kit (Replaces: 700054) | 1 |
|
$ 122.21 | ||||
| NI | 16000448 | Manual, Service-no Refund | 1 |
|
- |
