SELECT A DIAGRAM

01 - Body/oven


02 - Control Panel


03 - Door/drawer


04 - Gas Controls


05 - Top Assembly

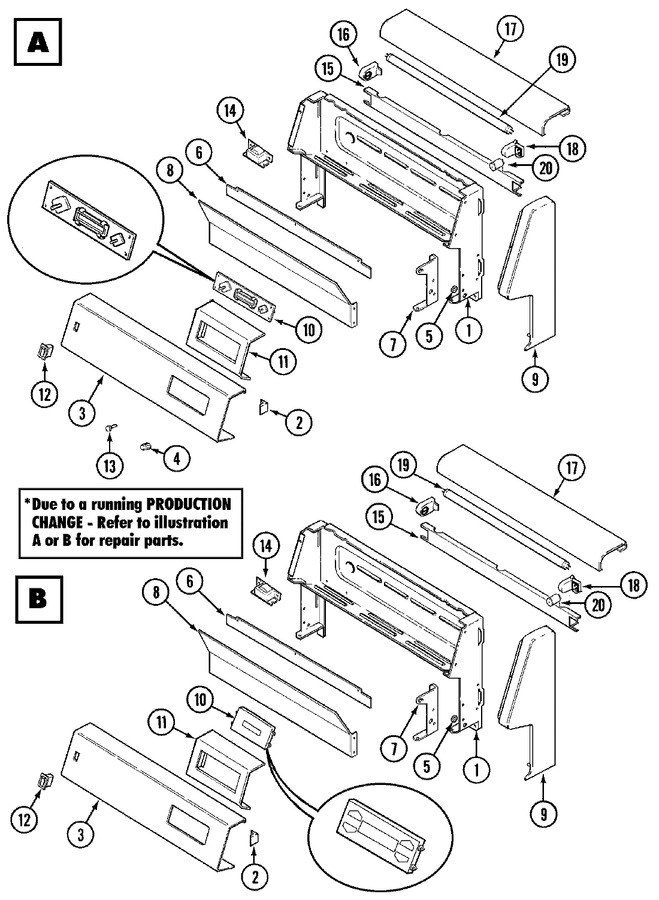

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4005F448-45		Cover, Wire	01	Appelez-nous	-
1	4001F091-51		Housing, Control Panel	01	Appelez-nous	-
2	8010P083-60		Spacer	01	Appelez-nous	-
3	7703P567-60		Panel, Control (blk)	01	Appelez-nous	-
3	12001083		Kit, Control Panel Assy.	01	Appelez-nous	-
4	7711P172-60		Knob, Clock (blk)	01			$ 23.55
5	WP3195558		Nut, Speed   (Replaces: 7103P044-60)	01			$ 7.68
6	8036P003-60		Shield, Sight	01	Appelez-nous	-
7	3807F453-51		Support, Main Top (rt)	01	Appelez-nous	-
7	3807F454-51		Support, Main Top (lt)	01	Appelez-nous	-
8	3604F188-09		Shield, Flue	01	Appelez-nous	-
9	7726P048-60		End Cap (lt-blk)	01	Appelez-nous	-
9	7726P047-60		End Cap (rt-blk)	01	Appelez-nous	-
10	7602P118-60		Clock (blk)	01	Appelez-nous	-
10	WP8312P015-60		Shaft, Bit Generator   (Replaces: 8312P015-60)	01			$ 0.81
11	3801F340-45		Bracket, Clock	01	Appelez-nous	-
11	3801F266-45		Bracket Clock Support	01	Appelez-nous	-
12	7403P067-60		Switch, Rocker (blk)	01			$ 91.35
13	7711P171-60		Knob, Clock (button-blk)	01			$ 19.90
14	7412P007-60		Ballast	01	Appelez-nous	-
15	3807F406-71		Holder, Lamp (wht)	01	Appelez-nous	-
16	7408P030-60		Receptacle, Snap-in (lt)	01	Appelez-nous	-
17	7724P054-60		Cover, Light (blk)	01	Appelez-nous	-
18	7408P029-60		Receptacle, Light (rt)	01	Appelez-nous	-
19	WP95292		Light, Control Panel   (Replaces: 7407P004-60)	01		Immediately	$ 121.45
20	7415P001-60		Starter	01	Appelez-nous	-
21	5180D138-60		Harness, Control Panel	01	Appelez-nous	-
22	16007436		Manual, Use & Care	01	Appelez-nous	-
22	8113P043-60		Manual, Use & Care	01	Appelez-nous	-
23	16000329		Guide, Quick Ref. - Magic Chef	01	Appelez-nous	-
