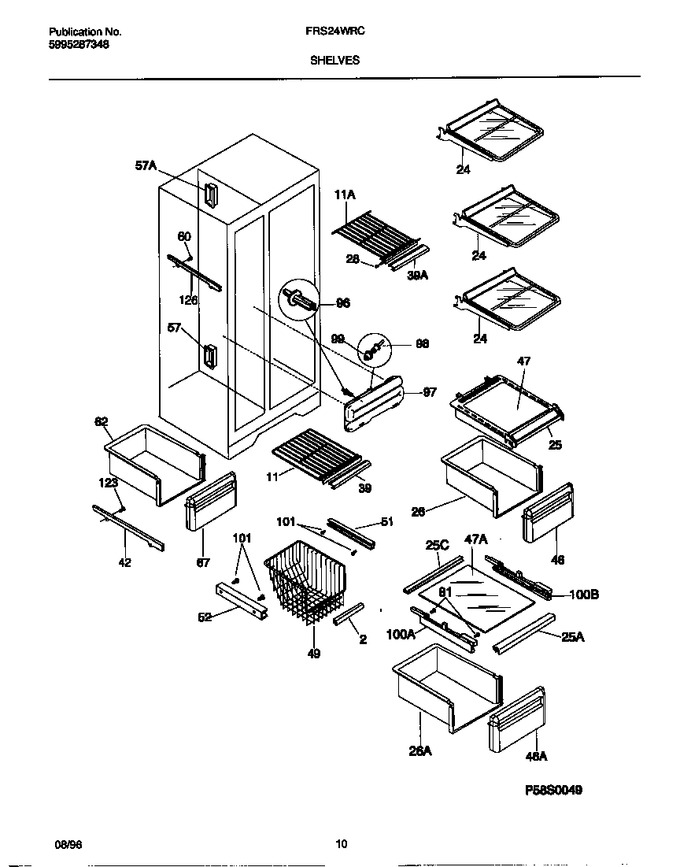

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303289382		Trim-basket		Appelez-nous	-
11	5303296576		Shelf-freezer, Fixed Wire		Appelez-nous	-
11	218298003		Shelf, Freezer, Sliding, Wire		Appelez-nous	-
24	215406119		Shelf-``spill Safe``, Fixed, White Graphics, (3)		Appelez-nous	-
25	218015302		Trim-storage Pan Cvr, Snap-on, Front		Appelez-nous	-
25	218015402		Trim-storage Pan Cvr, Snap-on, Rear		Appelez-nous	-
26	5303289501		Pan-storage,lower				$ 164.85
26	5303289500		Pan-storage,upper				$ 174.74
28	08013638		End Cap-shelf, Protector		Appelez-nous	-
39	215217580		Trim-frzr Shelf		Appelez-nous	-
39	215217579		Trim-frzr Shelf		Appelez-nous	-
46	5303308605		Front-storage Pan, Lower		Appelez-nous	-
46	5303308604		Front-storage Pan, Upper		Appelez-nous	-
47	215723552		Insert-pan Cover, Glass, Clear				$ 77.10
47	218390584		Insert-pan Cover, Glass, White Graphics		Appelez-nous	-
49	5303296573		Basket-sliding		Appelez-nous	-
51	5303296575		Hanger-basket, Rh				$ 49.78
52	215162502		Hanger, Basket, Lh, With Spring				$ 101.35
57	5303271653		Ferrule-inner				$ 20.27
57	5303289064		Ferrule-air		Appelez-nous	-
60	5304455852		Screw, Hex Washer Head, 8-15a X 1.000   (Replaces: 5303207328)				$ 12.76
62	5303289517		Tray - Deli				$ 133.19
67	5303308609		Front-deli Tray		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
96	215192600		Support - Water Tank				$ 10.71
97	5303918258		Water Tank Assy, Includes Tank, Grommets, Connectors   (Replaces: 218733900)				$ 121.63
98	5308015614		Connector - Tube				$ 34.57
99	5300186057		Grommet-tank				$ 28.98
100	218015601		Support-pan Cover, Rh				$ 55.18
100	218015501		Support-pan Cover, Lh				$ 37.26
101	5304455650		Screw, Hex Washer Head, 8-18ab X 3/4, Gusset/hanger   (Replaces: 215005000)				$ 14.18
123	215005101		Screw-roller/hanger`8-10 X 0.438   (Replaces: 215005100)				$ 14.89
*91126	215339900		Clip, Cantilevr Shlf				$ 5.83
126A	215205400		Rail-auger Bucket,lh				$ 64.00
126B	218232700		Rail-auger Bucket, Rh (not Illustrated)				$ 44.05
25A	218147701		Cover-storage Pan				$ 123.56
25B	5303307878		Trim-storage Pan Cvr, Upper, W/humidity Hole (not Illustrated)		Appelez-nous	-
25C	5303308340		Control-humidity (not Illustrated)		Appelez-nous	-
42A	215002301		Hanger-pan / Tray, Lh				$ 65.82
42B	215002401		Hanger, Pan/tray, Rh (not Illustrated)				$ 85.84
