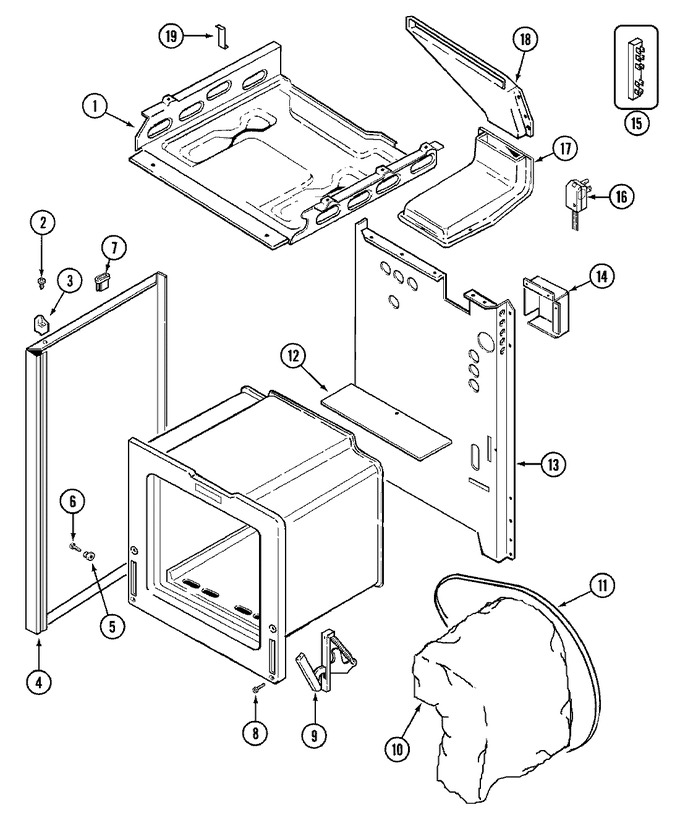

01 - Body
02 - Control Panel
03 - Door/drawer (g3127xra-5)
04 - Gas Controls
05 - Oven/base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4011F209-80 | Box, Burner | 01 |
|
- | ||||
| 2 | WP74004005 | Screw (Replaces: 7118P013-60) | 01 |
|
$ 6.95 | ||||
| 3 | 8010P087-60 | Spacer, Main Top (lt) | 01 |
|
- | ||||
| 3 | 8010P088-60 | Spacer, Main Top (rt) | 01 |
|
- | ||||
| 4 | 2618F085-64 | Panel, Side (alm) | 01 |
|
- | ||||
| 4 | 2618F099-64 | Panel, Side (alm) | 12 |
|
- | ||||
| 5 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 01 |
|
$ 7.07 | ||||
| 6 | W11772394 | Screw (Replaces: 7101P300-60) | 01 |
|
Immediately | $ 10.94 | |||
| 7 | 8007P023-60 | Bushing, Prop | 01 |
|
- | ||||
| 8 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 01 |
|
$ 4.29 | ||||
| 9 | 7106P032-60 | Hinge, Door | 01 |
|
- | ||||
| 10 | 4804F031-60 | Insulation, Oven Back | 01 |
|
- | ||||
| 10 | 4804F032-60 | Insulation, Oven Wrapper | 01 |
|
- | ||||
| 11 | 4820F001-59 | Strap, Retainer | 01 |
|
- | ||||
| 12 | 3807F416-45 | Support, Oven Back | 01 |
|
- | ||||
| 13 | 4002F188-80 | Back, Main | 01 |
|
- | ||||
| 14 | 4005F385-51 | Cover, Back Wire | 01 |
|
- | ||||
| 15 | 7401P037-60 | Block, Terminal | 01 |
|
- | ||||
| 16 | 7402P045-60 | Cord, Power | 01 |
|
- | ||||
| 17 | 4006W113-45 | Box, Vent | 01 |
|
- | ||||
| 17 | WP74003976 | Screw W/washer (Replaces: 7101P124-60) | 01 |
|
$ 6.47 | ||||
| 18 | 4022W005-19 | Extension, Flue Box | 01 |
|
- | ||||
| 19 | 3807F431-45 | Support, Main Top | 01 |
|
- |
