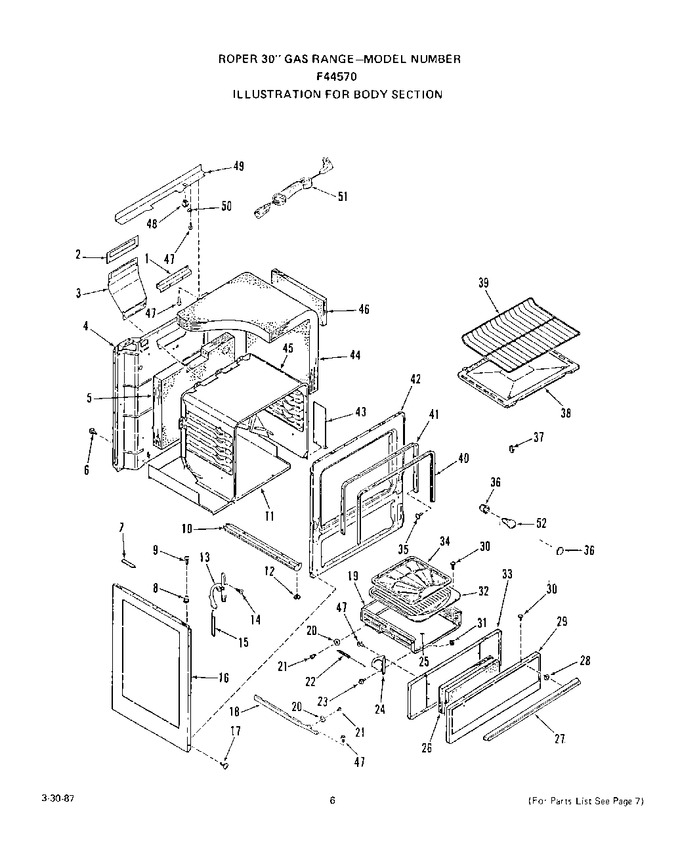

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	334528		Flue Deflector Support		Appelez-nous	-
2	329314		Insulation-flue		Appelez-nous	-
3	327079		Flue Deflector		Appelez-nous	-
4	327087		Back-main		Appelez-nous	-
5	328142		Insulation-oven Back		Appelez-nous	-
6	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
7	335320		Spacer-main Top		Appelez-nous	-
8	333892		Strike		Appelez-nous	-
9	327256		Screw 6-32x7/8``		Appelez-nous	-
10	334811		Base W/levelers-lt. Or Rt.		Appelez-nous	-
11	327053		Bottom-main		Appelez-nous	-
12	326052		Leg Leveler (4 Req)		Appelez-nous	-
13	332345		Right		Appelez-nous	-
13	332346		Left		Appelez-nous	-
14	331704		Screw		Appelez-nous	-
15	334723		Spring-oven Door		Appelez-nous	-
16	335830		Body Side (almond)		Appelez-nous	-
16	335826		White		Appelez-nous	-
17	326974		Screw 10abx1/2``		Appelez-nous	-
18	296325		Right		Appelez-nous	-
18	296324		Left		Appelez-nous	-
19	331565		Broiler Drawer (inc`s. 20 & 21)		Appelez-nous	-
20	69006		Roller		Appelez-nous	-
21	70275		Rivet		Appelez-nous	-
22	327481		Spring-broiler Drawer		Appelez-nous	-
23	329271		Shoulder Bolt		Appelez-nous	-
24	327482		Right		Appelez-nous	-
24	327483		Left		Appelez-nous	-
25	331554		Bottom-broiler Drawer		Appelez-nous	-
26	W10820036		Insulation   (Replaces: 296141)			Immediately	$ 27.45
27	334848		Handle		Appelez-nous	-
28	302343		Spacer		Appelez-nous	-
29	332137		White		Appelez-nous	-
29	332141		Almond		Appelez-nous	-
30	316849		Screw-10-32x1/2``		Appelez-nous	-
31	W10080180		Hex Nut 10-24   (Replaces: 271166)				$ 12.13
32	331593		Broiler Pan		Appelez-nous	-
33	331567		Lining-broiler Door		Appelez-nous	-
34	331588		Broiler Pan Grid		Appelez-nous	-
35	69014		Screw 10abx1/2``		Appelez-nous	-
36	295974		Holder-oven Lamp Bulb		Appelez-nous	-
37	115533		Thermostat Bulb Clip		Appelez-nous	-
38	331539		Oven Bottom		Appelez-nous	-
39	326068		Oven Rack		Appelez-nous	-
40	326047		Seal-oven Door		Appelez-nous	-
41	327875		Retainer-door Seal		Appelez-nous	-
42	334054		Front Frame		Appelez-nous	-
43	328984		Retainer-insulation		Appelez-nous	-
44	326040		Insulation-oven Top & Sides		Appelez-nous	-
45	331586		Oven Body		Appelez-nous	-
46	W10820036		Insulation   (Replaces: 296141)			Immediately	$ 27.45
47	327320		Screw 10-16x7/16``		Appelez-nous	-
48	232150		Disconnect		Appelez-nous	-
49	327355		Wire Cover-backguard Bottom		Appelez-nous	-
50	320983		Clip		Appelez-nous	-
51	235822		Service Cord		Appelez-nous	-
52	DA96-01243C		Oven Lamp Bulb   (Replaces: 111257)				$ 144.00
