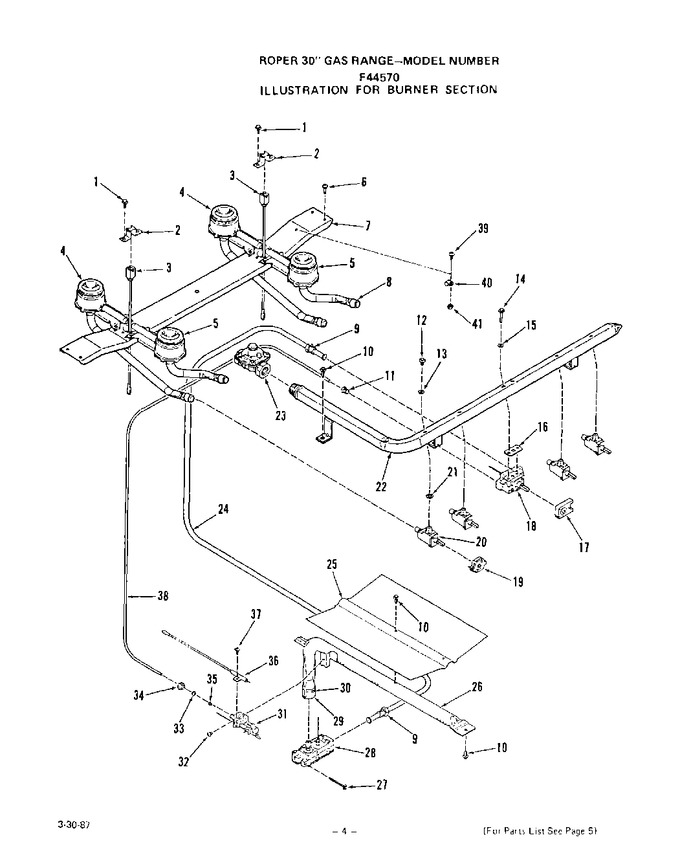

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	97217		Screw 8 - 32x3/8``		Appelez-nous	-
2	312453		Bracket-spark Igniter (lt. Or Rt.)		Appelez-nous	-
3	313629		Right		Appelez-nous	-
3	334509		Left		Appelez-nous	-
4	333223		Rear Burner-lt. Or Rt.. (inc`s. Key 8)		Appelez-nous	-
5	333222		Front Burner-lt. Or Rt. (inc`s. Key 8)		Appelez-nous	-
6	327621		Screw 6-32x3/8``		Appelez-nous	-
7	333607		Support-top Burner		Appelez-nous	-
8	327198		Air Shutter		Appelez-nous	-
9	142433		G.m. Inverted Nut 3/8``		Appelez-nous	-
10	327320		Screw 10-16x7/16``		Appelez-nous	-
11	79673		Loxit Nut		Appelez-nous	-
12	311455		Screw (for Key 20)		Appelez-nous	-
13	311692		Gasket (for Key 12)		Appelez-nous	-
14	318478		Screw (for Key 18)		Appelez-nous	-
15	318658		Gasket (for Key 14)		Appelez-nous	-
16	318657		Gasket (for Key 18)		Appelez-nous	-
17	318432		Switch-thermostat		Appelez-nous	-
18	330596		Thermostat (inc`s Key 16)		Appelez-nous	-
19	312457		Switch-gas Valve		Appelez-nous	-
20	332001		Gas Valve (inc`s. Key 21)		Appelez-nous	-
21	313563		Gasket (for Key 20)		Appelez-nous	-
22	333907		Manifold Pipe		Appelez-nous	-
23	324528		Pressure Regulator		Appelez-nous	-
24	295037		Tubing 3/8`` (inc`s. Key 9)		Appelez-nous	-
25	329316		Baffle - Oven Burner		Appelez-nous	-
26	329651		Oven Burner Asm (inc`s. Key 25, 29, 30)		Appelez-nous	-
27	323296		Screw 10-32 X 2``		Appelez-nous	-
28	321755		Control Valve (inc`s. 31 & 35)		Appelez-nous	-
29	312988		Air Shutter		Appelez-nous	-
30	312989		Adjustment Screw		Appelez-nous	-
31	318486		Pilot (inc`s. Key 35)		Appelez-nous	-
32	288248		Screw 10-24x1/4``		Appelez-nous	-
33	120488		G.m. Compression Sleeve 3/16``		Appelez-nous	-
34	120487		G.m. Compression Nut 3/16``		Appelez-nous	-
35	318485		Orifice Cup (for Key 31)		Appelez-nous	-
36	327217		Electrode		Appelez-nous	-
37	120855		Screw 6abx3/8``		Appelez-nous	-
38	322447		Tubing 3/16``		Appelez-nous	-
39	238833		Screw 8-32 X 3/8``		Appelez-nous	-
40	106767		Clip		Appelez-nous	-
41	239764		Nut		Appelez-nous	-
