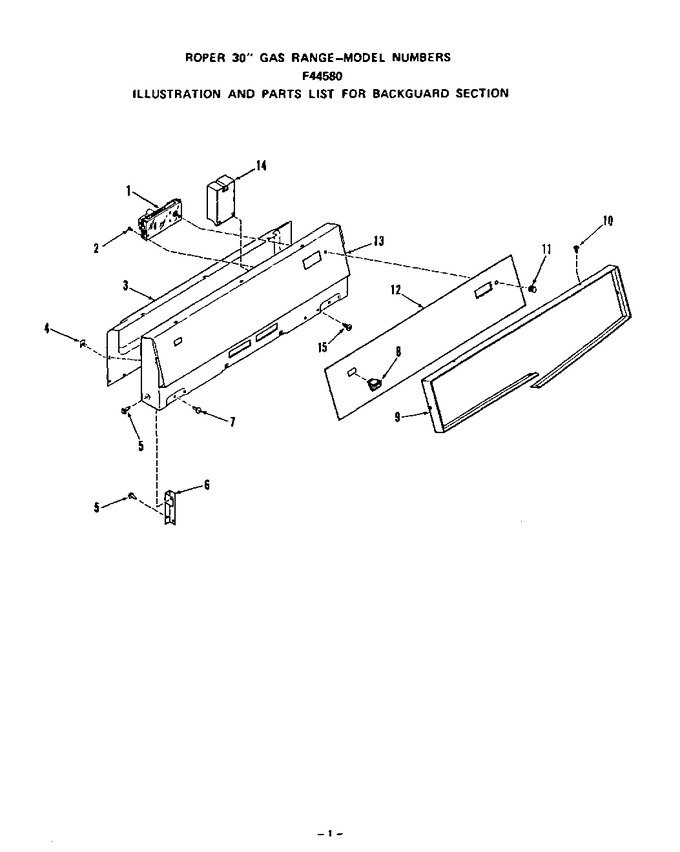

02 - Backguard
03 - Main Top
04 - Burner
05 - Body
06 - Oven Door
07 - Wire Harness, Griddle
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 336943 | Clock Lens |
|
- | |||||
| 1 | 336931 | Clock W/lens |
|
- | |||||
| 2 | 78153 | Screw 6-32x5/16`` |
|
- | |||||
| 3 | 334749 | Wire Cover |
|
- | |||||
| 4 | 70588 | Trim Clip |
|
- | |||||
| 5 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 6 | 327107 | Support (left) |
|
- | |||||
| 6 | 327106 | Support (right) |
|
- | |||||
| 7 | 326974 | Screw 10abx1/2`` |
|
- | |||||
| 8 | 334649 | Switch-oven Light |
|
- | |||||
| 9 | 335897 | Bezel - Backguard |
|
- | |||||
| 10 | 336152 | Screw |
|
- | |||||
| 11 | 334045 | Knob-clock |
|
- | |||||
| 12 | 335615 | Insert - Backguard |
|
- | |||||
| 13 | 335612 | Panel-backguard |
|
- | |||||
| 14 | 326136 | Module - Spark Igniter |
|
- | |||||
| 15 | 338750 | Use & Care Manual |
|
- | |||||
| 15 | 338850 | Repair Parts List |
|
- | |||||
| 15 | 335344 | Installation Guide |
|
- | |||||
| 15 | 329676 | Screw 13-16 X 1/2`` |
|
- |
