SELECT A DIAGRAM

02 - Backguard


03 - Main Top


04 - Burner


05 - Body


06 - Oven Door


07 - Wire Harness, Griddle


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	330242		Top Burner Grate (4 Req)		Appelez-nous	-
2	322888		Aeration Pan		Appelez-nous	-
3	338735		Rivet		Appelez-nous	-
4	335975		Hinge Bracket		Appelez-nous	-
5	320922		Hinge (left)		Appelez-nous	-
5	320921		Hinge (right)		Appelez-nous	-
6	321162		Screw 10-32 X 3/4``		Appelez-nous	-
7	332284		Support Rod		Appelez-nous	-
8	336152		Screw		Appelez-nous	-
9	327320		Screw 10-16x7/16``		Appelez-nous	-
10	335977		Cleat		Appelez-nous	-
11	333352		Manifold Panel Bracket (left)		Appelez-nous	-
11	333351		Manifold Panel Bracket (right)		Appelez-nous	-
12	338449		Gas Valve Knob		Appelez-nous	-
13	333786		Thermostat Knob		Appelez-nous	-
14	335757		Manifold Panel		Appelez-nous	-
15	333544		Burner Box Bottom		Appelez-nous	-
16	332324		Main Top (almond)		Appelez-nous	-
16	332318		Main Top (white)		Appelez-nous	-

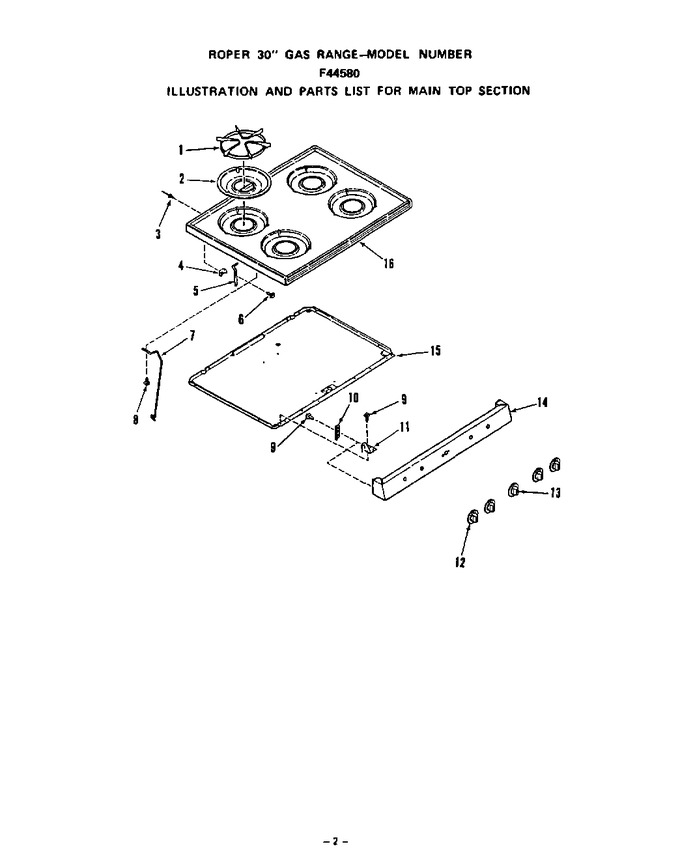

    View Diagram in Separate Window       Print Part List
