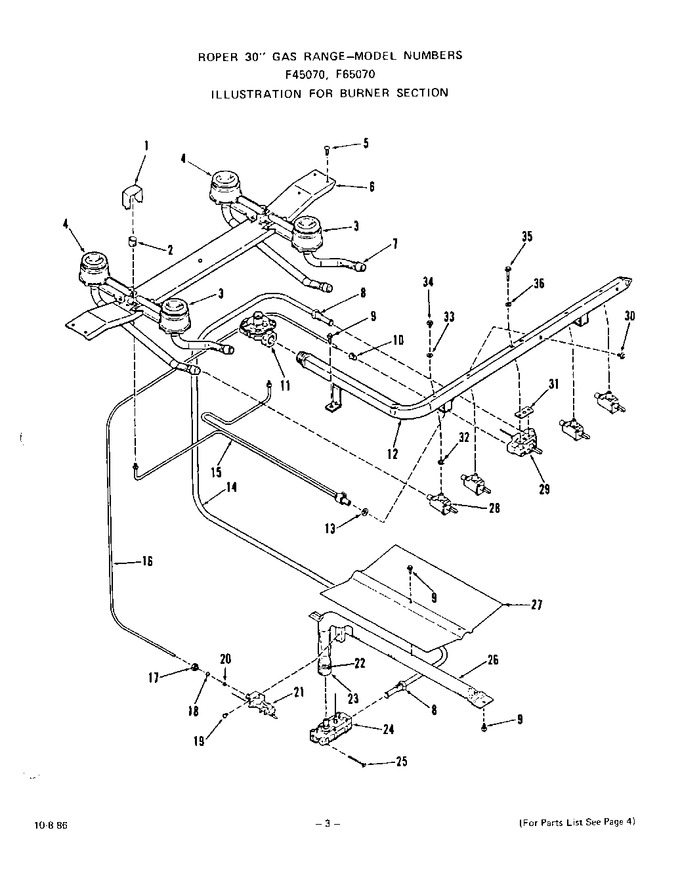

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	296183		Top Pilot Shield		Appelez-nous	-
2	308292		Pilot Cup		Appelez-nous	-
3	333222		Xfront Burner-lt. Or Rt. (inc`s. 7)		Appelez-nous	-
4	333223		Xrear Burner-lt. Or Rt. (inc`s. 7)		Appelez-nous	-
5	327621		Screw 6-32x3/8``		Appelez-nous	-
6	333609		Top Burner Support		Appelez-nous	-
7	327198		Air Shutter		Appelez-nous	-
8	113384		Inverted Nut 3/8``		Appelez-nous	-
9	327320		Screw 10-16x7/16``		Appelez-nous	-
10	79673		Hex Nut		Appelez-nous	-
11	324528		Xpressure Regulator		Appelez-nous	-
12	333903		Manifold Pipe		Appelez-nous	-
13	323913		Gasket		Appelez-nous	-
14	295037		Tubing 3/8``		Appelez-nous	-
15	323912		Xfilter W/pilot		Appelez-nous	-
16	322447		Tubing 3/16``		Appelez-nous	-
17	65712		Compression Nut 3/16``		Appelez-nous	-
18	65711		Compression Sleeve 3/16``				$ 6.30
19	288248		Screw 10-24x1/4``		Appelez-nous	-
20	318485		Xorifice Cup		Appelez-nous	-
21	318486		Xpilot		Appelez-nous	-
22	312989		Adjustment Screw -air Shutter		Appelez-nous	-
23	312988		Air Shutter		Appelez-nous	-
24	323680		Xoven Safety Valve		Appelez-nous	-
25	323296		Screw 10-32 X 2``		Appelez-nous	-
26	329651		Xoven Burner (inc`s. 22, 23 & 27)		Appelez-nous	-
27	329316		Baffle - Oven Burner		Appelez-nous	-
28	332001		Xgas Valve (4 Req)		Appelez-nous	-
29	334901		Xoven Thermostat (inc`s. 31)		Appelez-nous	-
30	323914		Mounting Screw (for Key 15)		Appelez-nous	-
31	318657		Thermostat Gasket		Appelez-nous	-
32	313563		Gasket (for Key 28)		Appelez-nous	-
33	304241		Gasket (for Key 34)		Appelez-nous	-
34	311455		Mounting Screw (for Key 28)		Appelez-nous	-
35	318478		Mounting Screw (for Key 29)		Appelez-nous	-
36	318658		Gasket (for Key 35)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
