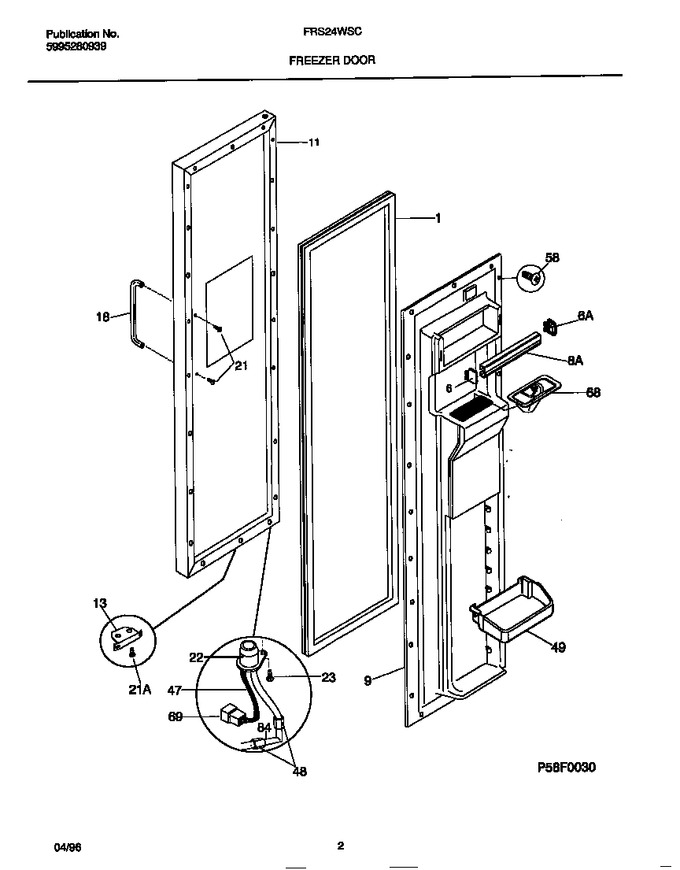

02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Container/drive


10 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215734323		Gasket-frzr Door, Black, Magnetic				$ 215.25
6	5303297814		Support-door Rack, Rh				$ 52.50
6	5303297813		Support-door Rack, Lh				$ 49.77
8	215474038		Rack-door		Appelez-nous	-
9	218510501		Panel-inner Door, Frzr		Appelez-nous	-
11	5303917677		Panel-frzr Door, Stainless Steel, W/foam Insulatn		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
18	218395301		Handle-door, Stainless Steel		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
21	215659600		Screw-handle Mtg,hex Head, 10-32 X 1/2		Appelez-nous	-
22	215615300		Bushing-door,bronze		Appelez-nous	-
23	5303001020		Screw, Cr Flat Head, 8-32(d) X 1/2		Appelez-nous	-
47	218485100		Harness-wiring, Frzr Door		Appelez-nous	-
48	5308000200		Nut, 7/16 X 20, Nylon		Appelez-nous	-
49	218592309		Bin-door, With Trim		Appelez-nous	-
58	5303314236		Screw, Truss/ph Head, 8-18ab X .500		Appelez-nous	-
68	218020600		Chute-ice		Appelez-nous	-
69	215341900		Connector-door Harn		Appelez-nous	-
84	5308010289		Elbow-water Tube				$ 45.84
*41800	215598900		Washer-flat, .691 X 1 X .05, Zinc, I&w Hinge Brkt		Appelez-nous	-
*41801	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
*41802	215361200		Foam Strip, Handle Mtg Hole		Appelez-nous	-
*41803	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
