SELECT A DIAGRAM

01 - Body


02 - Door/drawer (g3216wrx-m)


03 - Gas Controls

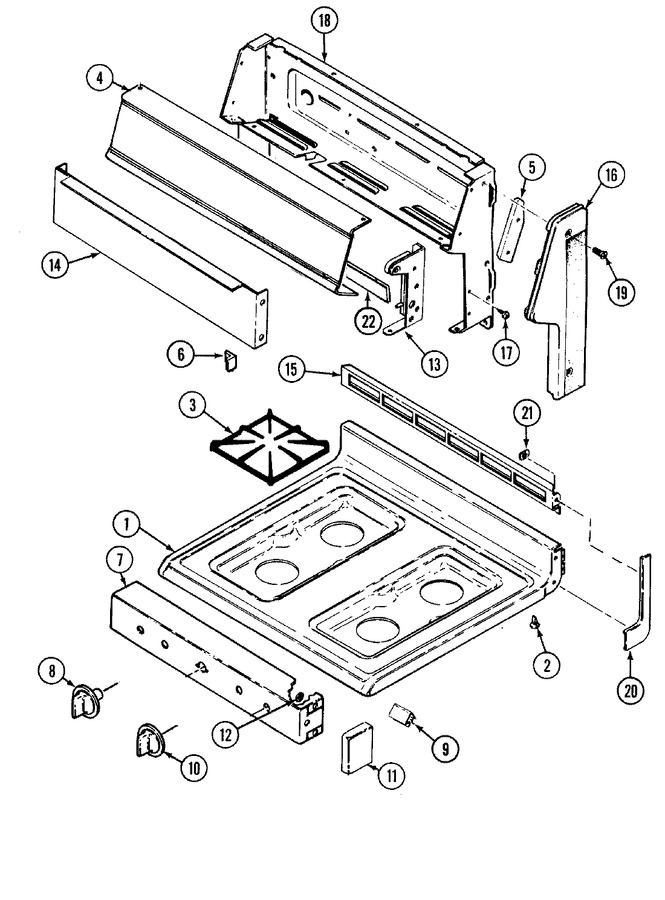

04 - Top Assembly/control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2001W082-81		Top, Main (wht)	01	Appelez-nous	-
2	8016P013-60		Glide	01	Appelez-nous	-
3	2003W026-00		Grate (blk)	01	Appelez-nous	-
4	2601F413-81		Panel, Control (wht)	01	Appelez-nous	-
5	3807F450-45		Support, Control Pnl (lt)	01	Appelez-nous	-
5	3807F449-45		Support, Control Pnl (rt)	01	Appelez-nous	-
6	8010P083-60		Spacer	01	Appelez-nous	-
7	2616F102-09		Panel, Manifold (blk)	01	Appelez-nous	-
7	7101P311-60		Screw----na	01	Appelez-nous	-
8	7731P064-60		Knob, Thermostat (blk)	01	Appelez-nous	-
9	7112P087-60		Clip, Top Locking	01	Appelez-nous	-
10	WP7711P135-60		Knob, Valve (blk)   (Replaces: 7733P027-60)	01			$ 25.06
11	7713P018-60		End Cap, Panel (blk)	01	Appelez-nous	-
12	7112P092-60		Clip, Spring Grip	01	Appelez-nous	-
13	3418A088-34		Hinge, Main Top (lt)	01	Appelez-nous	-
13	3418A087-34		Hinge, Main Top (rt)	01	Appelez-nous	-
14	3604F188-09		Shield, Flue	01	Appelez-nous	-
15	3608F042-09		Trim, Vent (blk)	01	Appelez-nous	-
15	7101P208-60		Screw (10abx1/4p Tr Zn)	01			$ 11.92
16	7726P052-60		End Cap (lt-blk)	01	Appelez-nous	-
16	7726P051-60		End Cap (rt-blk)	01	Appelez-nous	-
16	7101P317-60		Screw	01	Appelez-nous	-
17	W11233072		Screw, Housing   (Replaces: 7118P015-60)	01		Immediately	$ 12.62
18	4001F097-51		Housing, Control Panel	01	Appelez-nous	-
19	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	01			$ 15.94
20	7746P030-60		End Cap (rt-blk)	01			$ 26.16
20	7746P031-60		End Cap (lt-blk)	01			$ 26.25
21	WP3195558		Nut, Speed   (Replaces: 7103P129-60)	01			$ 7.68
22	8036P001-60		Shield	01	Appelez-nous	-
NI	7403P067-60		Switch, Rocker (blk)	01			$ 91.35
NI	74001401		Harness, Control Panel	01	Appelez-nous	-
NI	8113P042-60		Manual, Use & Care	01	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
