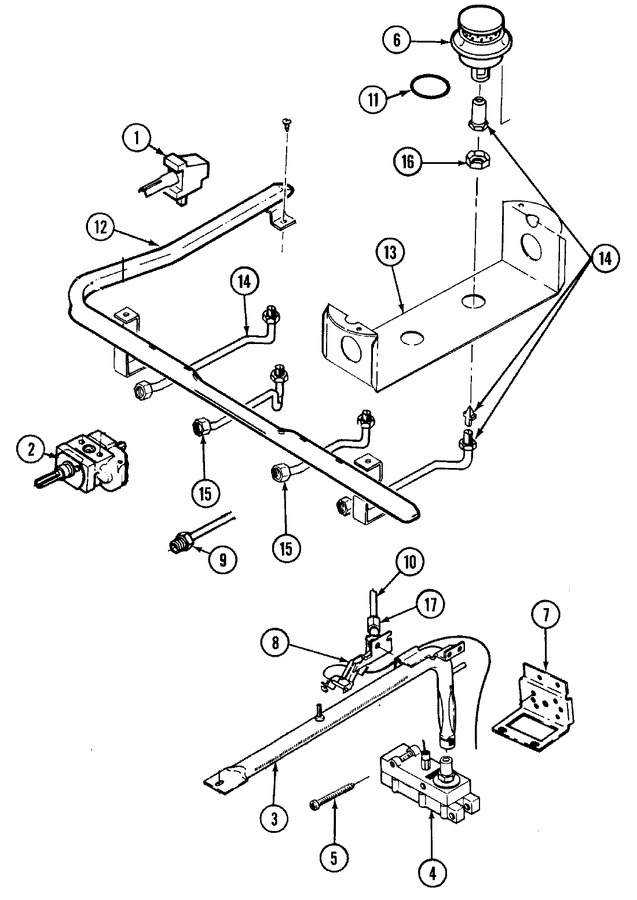

04 - Gas Controls
05 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7502P232-60 | Valve, Top Burner | 01 |
|
- | ||||
| 2 | 7101P010-60 | Screw, Control | 01 |
|
- | ||||
| 2 | 1555251 | Nut, Loxit (3/8``) | 01 |
|
- | ||||
| 2 | 1555222 | Nut, Loxit (3/16``) | 01 |
|
- | ||||
| 2 | 7507P047-60 | Plug, Pipe | 01 |
|
- | ||||
| 2 | 7515P034-60 | Thermostat | 01 |
|
- | ||||
| 3 | 3403D023-45 | Burner, Oven | 01 |
|
- | ||||
| 4 | 7501P127-60 | Valve, Oven | 01 |
|
- | ||||
| 5 | WP7101P062-60 | Screw No.10 X 2 (Replaces: 7101P062-60) | 01 |
|
$ 7.24 | ||||
| 6 | WP3412D024-09 | Sealed Burner Assy. (Replaces: 3412D017-09) | 01 |
|
Immediately | $ 92.69 | |||
| 7 | 3801F238-45 | Bracket, Safety Valve | 01 |
|
- | ||||
| 8 | 7432P070-60 | Pilot, Oven | 01 |
|
- | ||||
| 9 | 1555251 | Nut, Loxit (3/8``) | 01 |
|
- | ||||
| 9 | 3414F094-44 | Tubing 3/8`` | 01 |
|
- | ||||
| 10 | 3414F108-44 | Tubing 3/16`` Sub | 01 |
|
- | ||||
| 11 | WP3412D024-09 | Gasket, Burner (Replaces: 7201P050-60) | 01 |
|
Immediately | $ 92.69 | |||
| 12 | 7513P158-60 | Pipe, Manifold | 01 |
|
- | ||||
| 13 | 3807F451-45 | Support, Orifice Fitting | 01 |
|
- | ||||
| 14 | 7507P139-60 | Fitting, Orifice (rear) | 01 |
|
- | ||||
| 15 | 7507P131-60 | Fitting, Orifice (frt) | 01 |
|
- | ||||
| 16 | 7103P119-60 | Palnut | 01 |
|
- | ||||
| 17 | 1555261K | Nut & Ferrule (3/16``) | 01 |
|
- |
