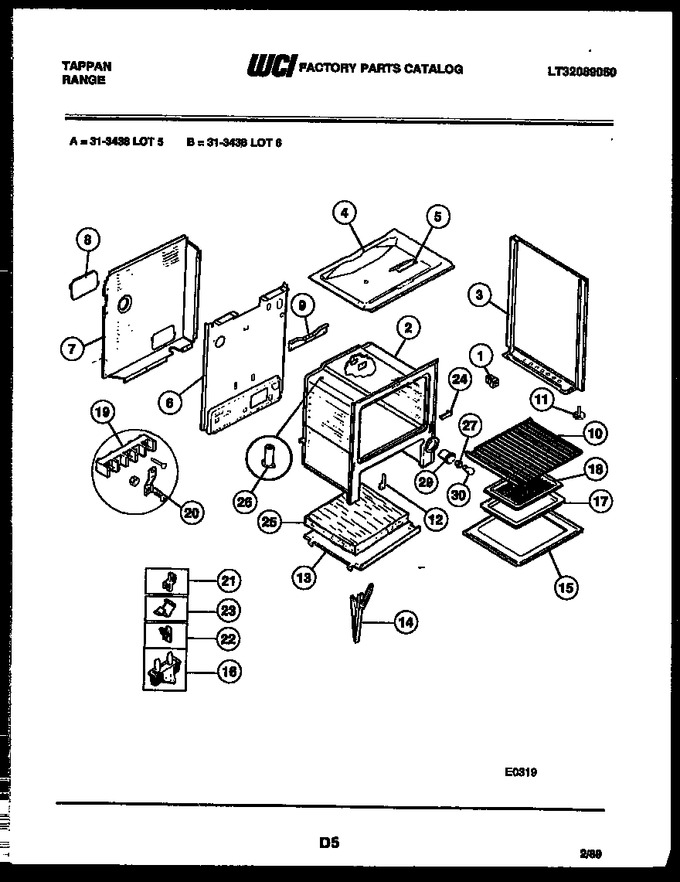

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	665T188P02		Spacer - B/s (8)		Appelez-nous	-
3	3200794		Panel B/s Lh-wheat		Appelez-nous	-
4	3017926		Burner Box		Appelez-nous	-
5	3131101		Cover, Plate		Appelez-nous	-
6	3131567		Back, Main		Appelez-nous	-
7	3051400		Shield, Lower Wall		Appelez-nous	-
8	3051369		Cover-lower Access		Appelez-nous	-
9	3051368		Cover-flue		Appelez-nous	-
10	3051220		Rack, Oven (2)		Appelez-nous	-
11	636M004P01		Screw, Level (4)		Appelez-nous	-
12	3131570		Cover-hinge Cutout (2)				$ 7.35
13	3200825		Shield-wool Lower		Appelez-nous	-
14	3131569		Channel, Door Hinge (2)		Appelez-nous	-
15	3051104		Bottom, Oven		Appelez-nous	-
16	3051147		Fuse-thermal Cut Out		Appelez-nous	-
17	539T010F01-86		Broiler Pan		Appelez-nous	-
18	3131356		Insert, Broiler Pan		Appelez-nous	-
19	709T031P01		Terminal Block		Appelez-nous	-
20	711T048P01		Ground Strap		Appelez-nous	-
21	145T025P01		Clip-thermal Bulb (2)				$ 1.76
22	3051162		Glide-drawer (2)			Immediately	$ 8.22
23	3051367		Clip-wire		Appelez-nous	-
24	3131548		Cover-front Main		Appelez-nous	-
25	3051390		Insulation-bottom		Appelez-nous	-
26	3051344		Tube-oven Vent		Appelez-nous	-
27	662T042P01		Socket-oven Light		Appelez-nous	-
29	3051343		Tube-oven Light		Appelez-nous	-
30	374T018P05		Bulb-oven Light		Appelez-nous	-
27A	3131201		Insulation-wrap (non-illustrated)		Appelez-nous	-
27B	3131200		Insulation-back (non-illustrated)		Appelez-nous	-
27C	3131114		Bumper-front Frame (non-illustrated)		Appelez-nous	-
27D	636T163P01		Screw-hinge Mount (6) (non-illustrated)		Appelez-nous	-
27E	479T069P41		Nut-hex Brass (6) (non-illustrated)		Appelez-nous	-
3A	3200791		Panel B/s Rh-wheat		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
