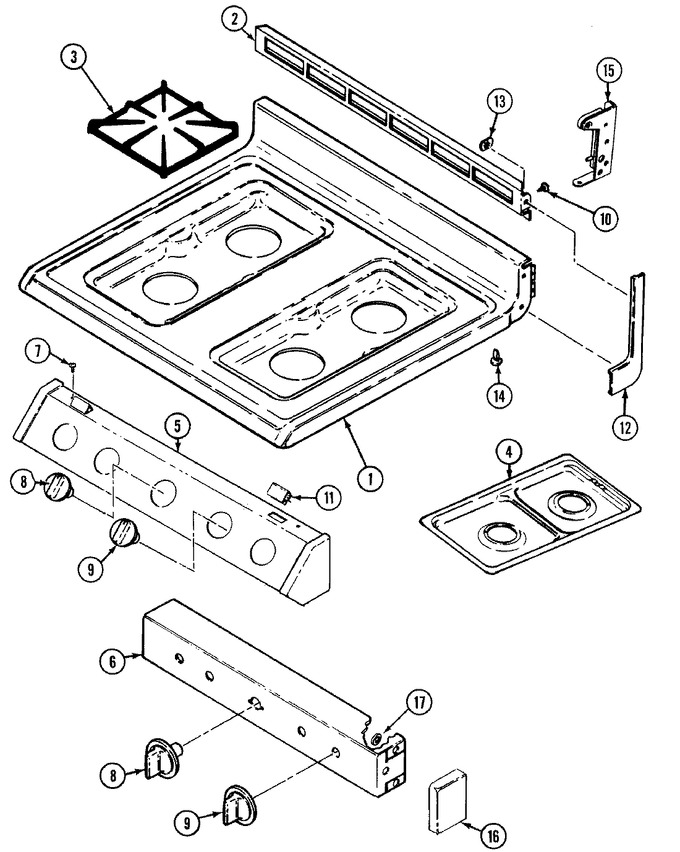

05 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2001W082-84 | Top, Main (alm) | 01 |
|
- | ||||
| 2 | 3608F042-09 | Trim, Vent (blk) | 01 |
|
- | ||||
| 3 | 2003W023-00 | Grate (blk) | 01 |
|
- | ||||
| 3 | 2003W027-00 | Grate (blk) | 09 |
|
- | ||||
| 4 | 5401A452-60 | Drip Bowl Kit (accessory) | 01 |
|
- | ||||
| 5 | 7712P134-60 | Panel, Manifold (blk) | 01 |
|
- | ||||
| 6 | 7101P291-60 | Screw | 01 |
|
- | ||||
| 6 | 2616F102-09 | Panel, Manifold (blk) | 01 |
|
- | ||||
| 7 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 8 | 7731P064-60 | Knob, Thermostat (blk) | 01 |
|
- | ||||
| 8 | 7731P071-60 | Knob, Thermostat (blk) | 01 |
|
$ 39.24 | ||||
| 9 | 7733P065-60 | Knob, Valve | 01 |
|
- | ||||
| 10 | 7101P028-60 | Screw, Top Hinge | 01 |
|
- | ||||
| 11 | 7112P087-60 | Clip, Top Locking | 01 |
|
- | ||||
| 12 | 8270P095-60 | Tape, Double Sided | 01 |
|
- | ||||
| 12 | 7746P031-60 | End Cap (lt-blk) | 01 |
|
$ 26.25 | ||||
| 12 | 7746P030-60 | End Cap (rt-blk) | 01 |
|
$ 26.16 | ||||
| 13 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 01 |
|
$ 7.68 | ||||
| 14 | 8016P013-60 | Glide | 01 |
|
- | ||||
| 15 | 3807F424-51 | Support, Housing (lt) | 01 |
|
- | ||||
| 15 | 3807F423-51 | Support, Housing (rt) | 01 |
|
- | ||||
| 15 | 8114P348-60 | Cover, Hinge Support | 01 |
|
- | ||||
| 16 | 7713P018-60 | End Cap, Panel (blk) | 01 |
|
- | ||||
| 17 | 7712P092-60 | Panel, Manifold | 01 |
|
- |
