SELECT A DIAGRAM

02 - Backguard


03 - Main Top


04 - Burner


05 - Body


06 - Oven Door


07 - Wire Harness , Griddle

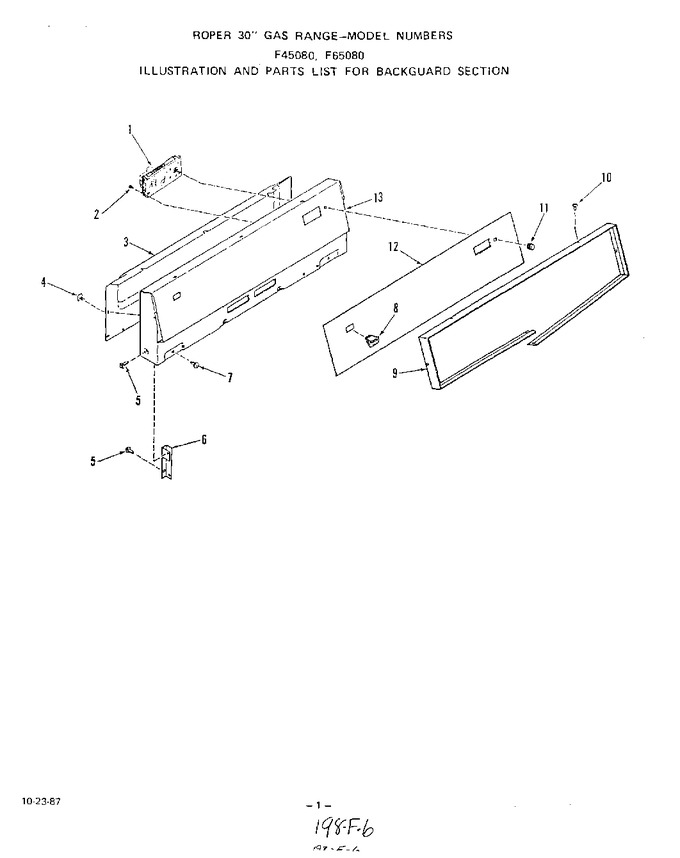

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	336931		Clock Asm Tod		Appelez-nous	-
2	78153		Screw 6-32x5/16``		Appelez-nous	-
3	334749		Wire Cover		Appelez-nous	-
4	70588		Trim Clip		Appelez-nous	-
5	327320		Screw 10-16x7/16``		Appelez-nous	-
6	327106		Support (right)		Appelez-nous	-
6	327107		Support (left)		Appelez-nous	-
7	326974		Screw 10abx1/2``		Appelez-nous	-
8	334649		Switch-oven Light		Appelez-nous	-
9	335897		Bezel - Backguard		Appelez-nous	-
10	337857		Screw		Appelez-nous	-
11	334045		Knob-clock		Appelez-nous	-
12	335615		Insert - Backguard		Appelez-nous	-
13	335612		Panel-backguard		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
