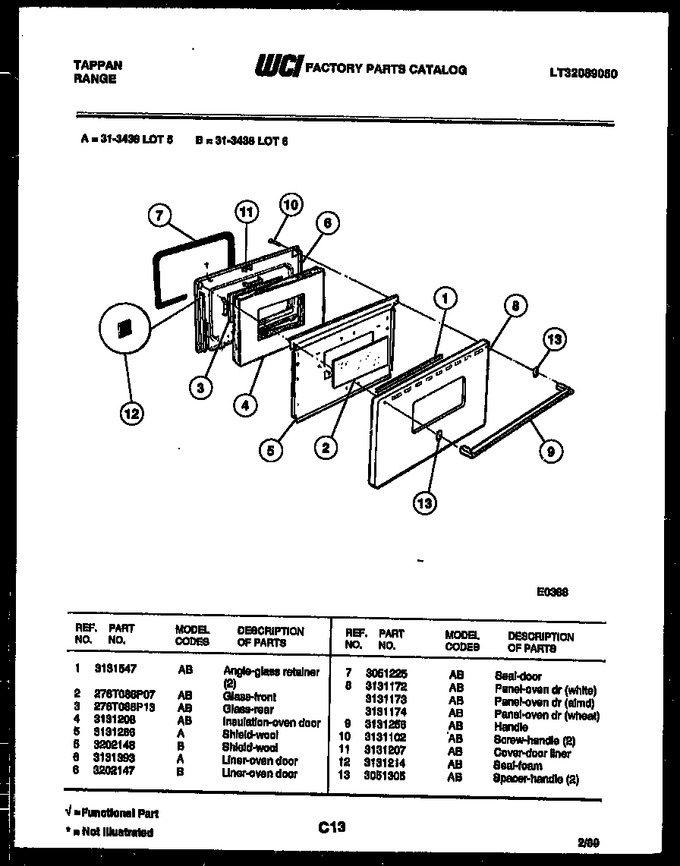

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131547 | Angle-glass Retainer (2) |
|
- | |||||
| 2 | 276T088P07 | Glass-front |
|
- | |||||
| 3 | 276T088P13 | Glass (rear) |
|
- | |||||
| 4 | 3131208 | Insulation, Oven Door |
|
- | |||||
| 5 | 3202148 | Shield-wool |
|
- | |||||
| 6 | 3202147 | Liner-oven Door |
|
- | |||||
| 7 | 3051225 | Seal-door |
|
- | |||||
| 8 | 3131174 | Panel-oven Dr (wheat) |
|
- | |||||
| 9 | 3131256 | Handle |
|
- | |||||
| 10 | 3131102 | Screw, Handle (2) |
|
- | |||||
| 11 | 3131207 | Cover, Door Liner |
|
- | |||||
| 12 | 3131214 | Seal-foam |
|
- | |||||
| 13 | 3051305 | Spacer, Handle, (2) |
|
- |
