Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 326010 Inner Glass Appelez-nous -
2 332067 Outer Glass Appelez-nous -
3 112370 Cushion Appelez-nous -
4 332066 Frame Appelez-nous -
5 335305 Handle Appelez-nous -
6 DE81-05147A Spacer, Door Handle   (Replaces: 107158) Special Order $ 205.79

7 331704 Screw Appelez-nous -
8 333014 Washer Appelez-nous -
9 300864 Screw 10-32x3/4`` Appelez-nous -
10 333015 Spacer-glass Appelez-nous -
11 104520 Screw 10-32 X 17/32`` Appelez-nous -
12 328622 Retainer Appelez-nous -
13 325999 Insulation Appelez-nous -
14 331581 Lining (f4557 Models) Appelez-nous -
14 325946 Lining (f6557 Models) Appelez-nous -
15 99279 Washer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

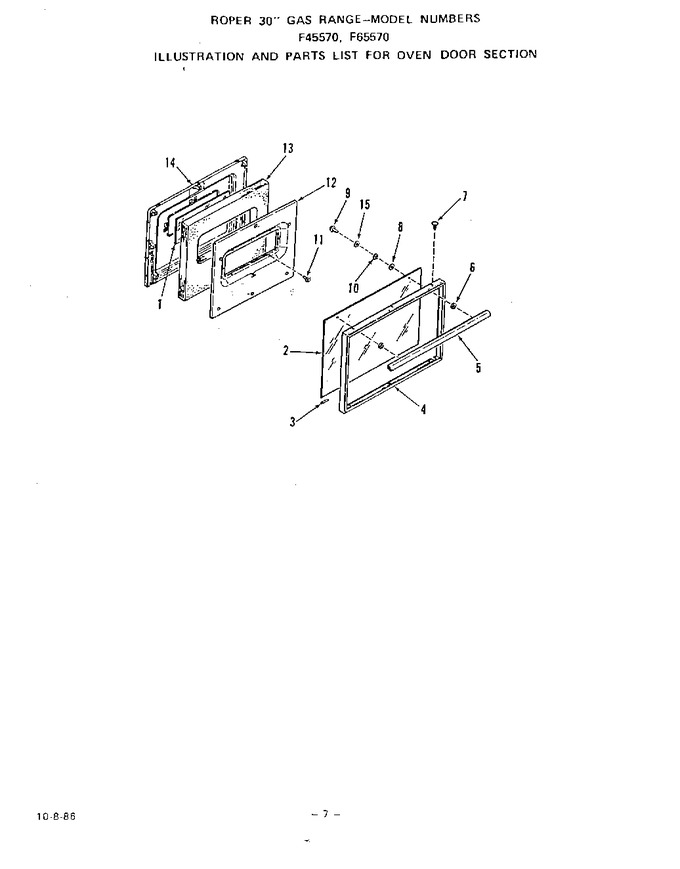

Diagram for F6557^0
