SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Gas Controls


05 - Oven/base

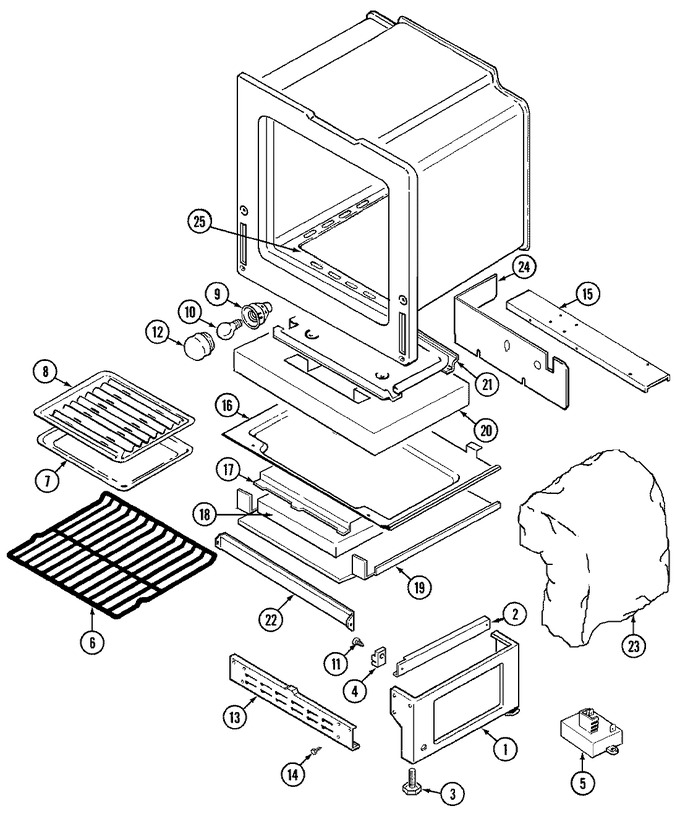

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74001439		Pedestal (sides)	16	Appelez-nous	-
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	16		Immediately	$ 12.62
2	3406F028-51		Runner, Drawer	16	Appelez-nous	-
3	7101P306-60		Leg, Leveling	16	Appelez-nous	-
4	WPW10348409		Screw (8abx13/16-zn)   (Replaces: 74001449)	16		Immediately	$ 6.98
4	8004P033-60		Support, Drawer	16	Appelez-nous	-
5	7510P046-60		Regulator, Voltage	16	Appelez-nous	-
6	WPW10282492		Rack, Oven   (Replaces: 7801P047-60)	16		Immediately	$ 65.15
7	Y3401F02019		Pan, Broil	16	Appelez-nous	-
8	Y3413F01619		Insert, Broil Pan	16	Appelez-nous	-
9	WP7407P182-60		Receptacle, Bulb   (Replaces: 7407P088-60)	16		Immediately	$ 66.10
10	WP67002552		Lamp, Oven   (Replaces: 7407P027-60)	16		Immediately	$ 10.58
11	WPW10348409		Screw (8abx13/16-zn)   (Replaces: 74001449)	16		Immediately	$ 6.98
12	WP9781049		Cover, Bulb   (Replaces: 7724P047-60)	16		Immediately	$ 71.93
13	4020F001-67		Pedestal (fr & Rear)	16	Appelez-nous	-
14	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	16		Immediately	$ 12.62
15	3807F476-51		Support, Valve & Regulator	16	Appelez-nous	-
15	W11233072		Screw   (Replaces: 7101P290-60)	16		Immediately	$ 12.62
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	16		Immediately	$ 12.62
16	3804F112-51		Retainer, Insulation	16	Appelez-nous	-
17	3604F204-51		Shield, Heat	16	Appelez-nous	-
18	7002P140-60		Insulation, Drawer & Shield	16	Appelez-nous	-
19	W11233072		Screw   (Replaces: 7101P290-60)	16		Immediately	$ 12.62
19	3604F205-51		Shield, Drawer	16	Appelez-nous	-
20	4804F014-60		Insulation, Oven Bottom	16	Appelez-nous	-
21	74001651		Pan, Bake Burner	16	Appelez-nous	-
21	W11233072		Screw   (Replaces: 7101P290-60)	16		Immediately	$ 12.62
22	WP74003976		Screw W/washer   (Replaces: 7101P124-60)	16			$ 6.47
22	3601F208-45		Baffle, Oven Front	16	Appelez-nous	-
23	74001159		Insulation, Back	16	Appelez-nous	-
23	4804F036-60		Insulation, Wrap	16	Appelez-nous	-
24	W11233072		Screw   (Replaces: 7101P290-60)	16		Immediately	$ 12.62
24	4005F429-51		Cover, Valve	16	Appelez-nous	-
25	3601F229-45		Baffle, Oven Bottom	16	Appelez-nous	-
25	5504M004-19		Bottom, Oven Assy.	16	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
