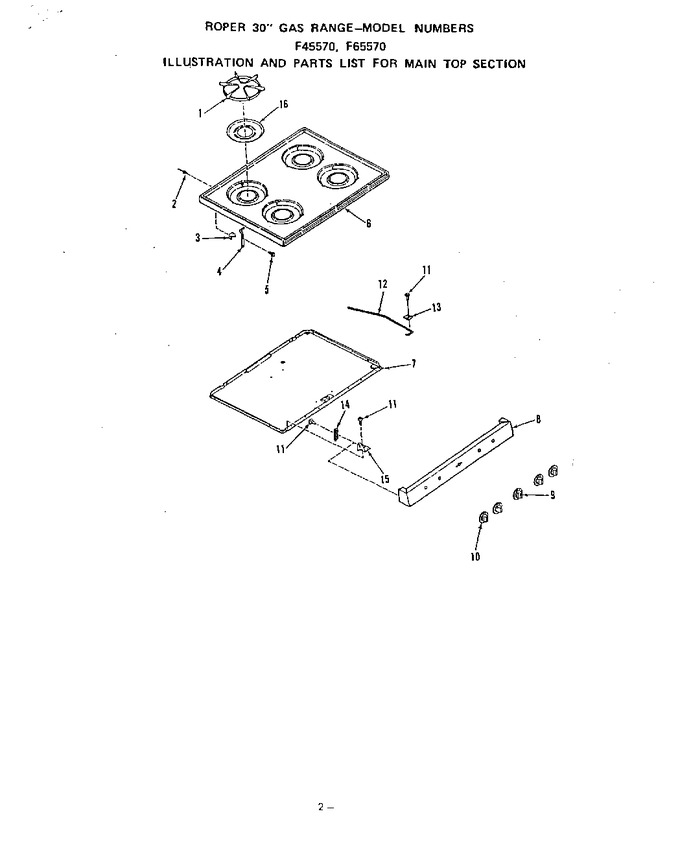

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	330242		Top Burner Grate (4 Req)		Appelez-nous	-
2	301167		Rivet			Immediately	$ 2.16
3	335975		Hinge Bracket		Appelez-nous	-
4	320921		Right		Appelez-nous	-
4	320922		Left		Appelez-nous	-
5	321162		Screw 10-32 X 3/4``		Appelez-nous	-
6	332318		White		Appelez-nous	-
6	332324		Almond		Appelez-nous	-
6	335298		Chrome		Appelez-nous	-
7	333544		Burner Box Bottom		Appelez-nous	-
8	335757		Manifold Panel (black)		Appelez-nous	-
8	335304		Almond		Appelez-nous	-
8	335303		White		Appelez-nous	-
9	333786		Thermostat Knob		Appelez-nous	-
10	333785		Gas Valve Knob		Appelez-nous	-
11	327320		Screw 10-16x7/16``		Appelez-nous	-
12	334482		Support Rod		Appelez-nous	-
13	326348		Clamp		Appelez-nous	-
14	335977		Cleat		Appelez-nous	-
15	333352		Left		Appelez-nous	-
15	333351		Right		Appelez-nous	-
16	322888		Aeration Pan F65570 Models		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
