01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:

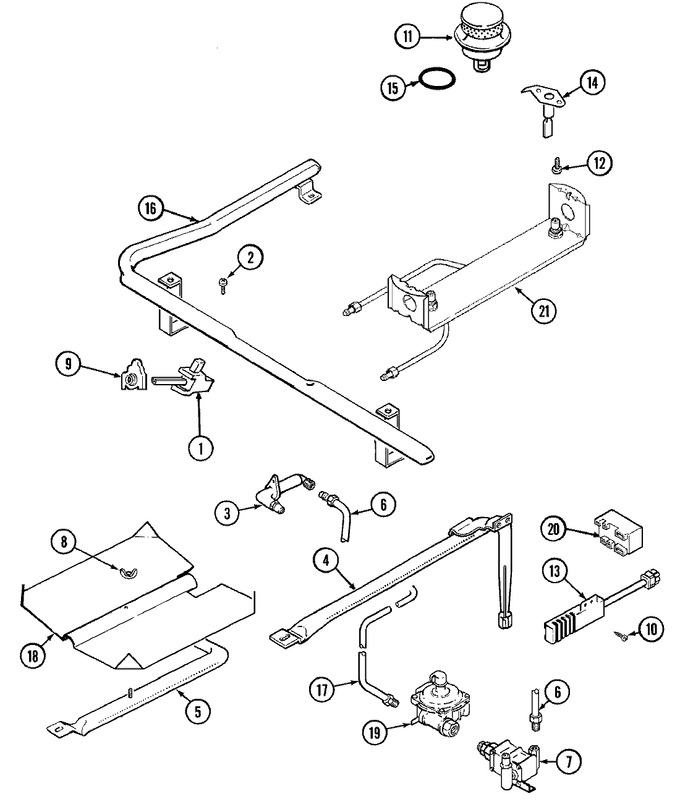

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7502P251-60 | Valve, Top Burner | 16 |
|
- | ||||
| 2 | 7101P044-60 | Screw, Valve | 16 |
|
- | ||||
| 3 | 3605F186-45 | Plate, Fitting | 16 |
|
- | ||||
| 3 | 74001779 | Fitting, Broil Burner | 16 |
|
- | ||||
| 3 | WP3387230 | Screw, No.10 X .5 Tya (Replaces: 7101P274-60) | 16 |
|
Immediately | $ 7.69 | |||
| 4 | 3807F446-45 | Support, Burner | 16 |
|
- | ||||
| 4 | 3403D043-45 | Burner, Bake | 16 |
|
- | ||||
| 5 | 7101P287-60 | Screw, Metal Grounding | 16 |
|
$ 12.03 | ||||
| 5 | 3403D024-45 | Burner, Broil | 16 |
|
- | ||||
| 6 | 3414F102-44 | Tubing, Broil Burner (3/8``) | 16 |
|
- | ||||
| 6 | 1555251 | Nut, Loxit (3/8``) | 16 |
|
- | ||||
| 7 | 74001442 | Valve, Oven | 16 |
|
- | ||||
| 8 | 7103P030-60 | Nut, Wing | 16 |
|
$ 6.37 | ||||
| 9 | WP7403P279-60 | Switch, Igniter (Replaces: 7403P279-60) | 16 |
|
$ 91.89 | ||||
| 10 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 16 |
|
$ 4.29 | ||||
| 11 | WP3412D024-09 | Sealed Burner Assy. (blk) (Replaces: 3412D018-09) | 16 |
|
Immediately | $ 92.69 | |||
| 11 | 7101P343-60 | Screw | 16 |
|
- | ||||
| 12 | WP59002061 | Screw (Replaces: 7101P315-60) | 16 |
|
$ 6.98 | ||||
| 13 | 12400035 | Igniter, Oven (Replaces: 7432P076-60) | 16 |
|
Immediately | $ 60.44 | |||
| 13 | 4005F421-45 | Cover,igniter | 16 |
|
- | ||||
| 13 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 16 |
|
Immediately | $ 12.62 | |||
| 13 | WP3351614 | Screw (Replaces: 7101P328-60) | 16 |
|
Immediately | $ 6.26 | |||
| 14 | W10124350 | Not Required Part Or See Note Igniter Not Sold Separately (must Order Sealed Burner- Item No.11) | 16 |
|
- | ||||
| 15 | WP3412D024-09 | Gasket, Burner (Replaces: 7201P050-60) | 16 |
|
Immediately | $ 92.69 | |||
| 16 | 7103P130-60 | Nut, Loxit (3/8``) | 16 |
|
$ 8.20 | ||||
| 16 | 7513P120-60 | Pipe, Manifold | 16 |
|
- | ||||
| 17 | 3414F103-44 | Tubing, Regulator/pipe (3/8``) | 16 |
|
- | ||||
| 17 | 7103P058-60 | 3/8`` Micro Loxit Nut | 16 |
|
- | ||||
| 18 | W11233072 | Screw (Replaces: 7101P290-60) | 16 |
|
Immediately | $ 12.62 | |||
| 18 | 3601F217-47 | Baffle, Broil Burner | 16 |
|
- | ||||
| 19 | 7510P064-60 | Regulator | 16 |
|
- | ||||
| 20 | 7431P026-60 | Module, Spark | 16 |
|
- | ||||
| 20 | 3807F473-51 | Support, Spark Module | 16 |
|
- | ||||
| 20 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 16 |
|
Immediately | $ 12.62 | |||
| 21 | 5187D032-60 | Orifice Fitting Assembly | 16 |
|
- | ||||
| NI | 5125A312-60 | Harness, Loose/burner Box | 16 |
|
- | ||||
| NI | 5120D019-60 | Harness, Spark Module/top | 16 |
|
- | ||||
| NI | 5140D035-60 | Wires, Igniter | 16 |
|
- |
