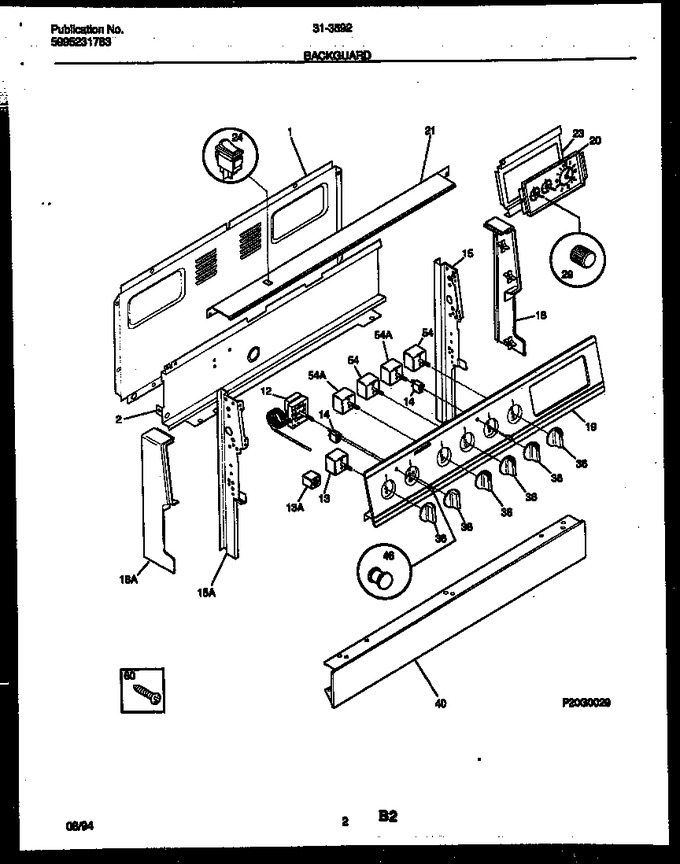

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316015701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
12	316032400		Thermostat, Oven, Non Sc		Appelez-nous	-
13	316032800		Switch-selector, 4 Pos Nsc		Appelez-nous	-
14	316022502		Light/lamp, Indicator, 250 V, (3)		Appelez-nous	-
15	316023102		Support-backguard, Rh		Appelez-nous	-
18	316021800		End Cap, Black, Rh				$ 81.32
19	316014706		Panel-control, Metal		Appelez-nous	-
20	316017403		Clock/timer, Analog 3 Stem		Appelez-nous	-
21	316014801		Trim-canopy/shield, Black, Top		Appelez-nous	-
23	316015001		Bracket-clock Mtg		Appelez-nous	-
24	5303208662		Switch-oven Light, Rocker		Appelez-nous	-
29	3131472		Knob-clock		Appelez-nous	-
36	316015200		Knob-control, 6		Appelez-nous	-
40	316009254		Panel-manifold		Appelez-nous	-
46	316040200		Lens-light/lamp, Indicator, Amber		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
60	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
13A	5303291407		Switch-pulsar, Cycling		Appelez-nous	-
15A	316023103		Support-backguard, Lh		Appelez-nous	-
15B	5303288574		Screw, Truss Head, 8-10 X 3/8 (non-illustrated)		Appelez-nous	-
18A	316021801		End Cap, Black, Lh				$ 94.29
54A	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
