SELECT A DIAGRAM

02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Cabinet Parts


06 - Shelves And Supports


07 - Refrigerator Control Assembly, Damp


08 - System And Automatic Defrost Parts


09 - System And Automatic Defrost Parts


10 - Ice Door, Dispenser And Water Tanks


11 - Ice Dispenser


12 - Ice Dispenser


13 - Ice Maker And Installation Parts


14 - Ice Maker And Installation Parts

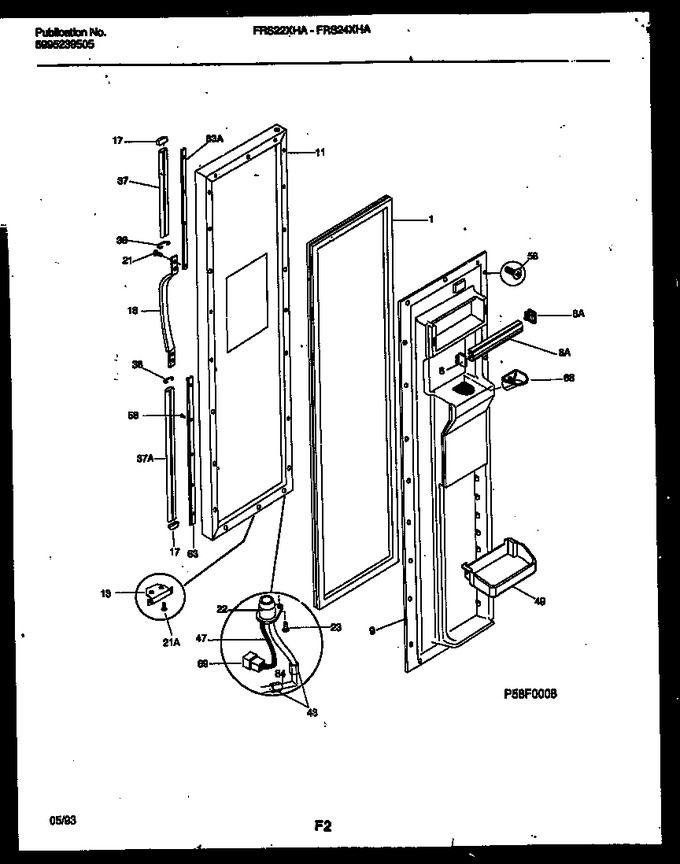

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215808213		Gasket-frzr Door, Magnetic, White		Appelez-nous	-
6	5303297813		Support-door Rack, Lh				$ 49.77
9	215426901		Panel-inner Door, Frzr		Appelez-nous	-
11	215202701		Panel-frzr Door, White, W/ Foam Insulatn		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
17	215100001		Handle End, White		Appelez-nous	-
18	215068801		Handle-door, White		Appelez-nous	-
21	215732700		Screw-handle Mtg, Pan Head, 10-12 X 1/2		Appelez-nous	-
22	215615300		Bushing-door,bronze		Appelez-nous	-
23	5303001020		Screw, Cr Flat Head, 8-32(d) X 1/2		Appelez-nous	-
37	215117404		Trim-handle, 13.69``, White, Upper		Appelez-nous	-
38	215117301		Band-decorative,handle		Appelez-nous	-
47	215667300		Harness-wiring, Frzr Door		Appelez-nous	-
48	5308000200		Nut, 7/16 X 20, Nylon		Appelez-nous	-
49	5303299659		Bin-door, (3)		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
63	215117207		Rail-handle Trim Mtg, 26.43``, Lower		Appelez-nous	-
68	5303297851		Chute-ice		Appelez-nous	-
69	215341900		Connector-door Harn		Appelez-nous	-
84	5308010289		Elbow-water Tube				$ 45.84
*76641	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
21A	215218600		Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4		Appelez-nous	-
37A	215117403		Trim-handle, 29.41``, White, Lower		Appelez-nous	-
63A	215117201		Rail-handle Trim Mtg, 11.95``, Upper		Appelez-nous	-
6A	5303297814		Support-door Rack, Rh				$ 52.50
8A	5303297510		Rack-door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
