SELECT A DIAGRAM

01 - Cover


02 - Freezer Door

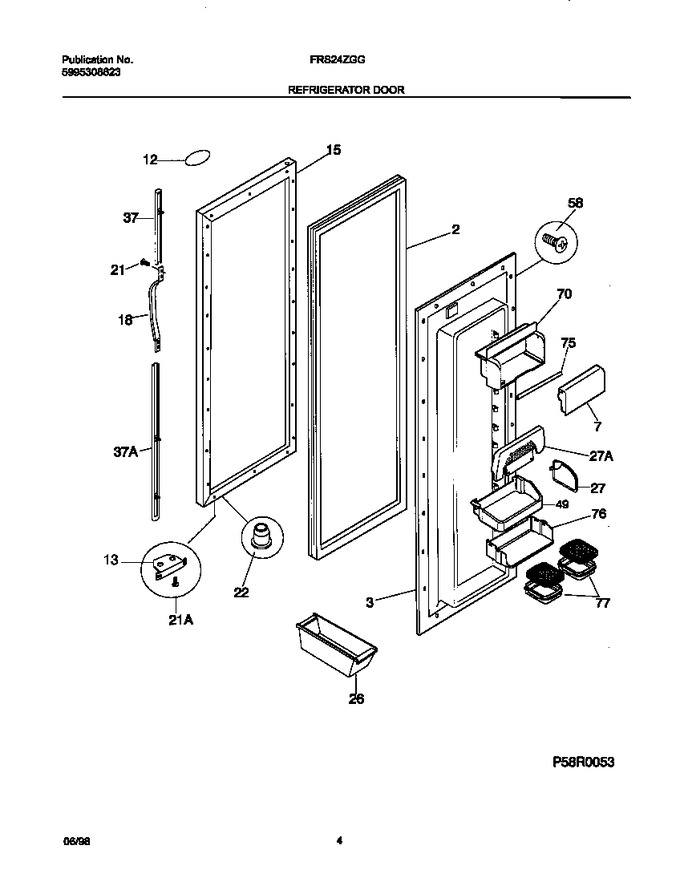

03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice Dispenser


09 - Ice Container


10 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734324		Gasket-refr Door, Black, Magnetic				$ 242.92
3	215353101		Panel-inner Door, Refr		Appelez-nous	-
7	218383101		Door-dairy		Appelez-nous	-
12	218364006		Frame-nameplate, Black		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	5303917510		Panel-refr Door, Black, W/foam Insulatn		Appelez-nous	-
18	218025205		Handle-door, Metallic Gray, Soft Grip		Appelez-nous	-
21	218578600		Screw-door Stop Mtg,phl Truss Hd ,				$ 8.08
21	218843801		Screw   (Replaces: 5303001001)				$ 14.41
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
27	218714201		Retainer, Tall Bottle				$ 42.72
27	218370101		Snugger-door Bin, ``paddle Type``				$ 88.03
37	215867066		Trim-handle,metallic Gray ,upper ,		Appelez-nous	-
37	218676003		Band-decorative, Gold				$ 47.11
37	215867063		Trim-handle,metallic Gray ,lower ,		Appelez-nous	-
49	218592307		Bin-door, Gallon, With Trim		Appelez-nous	-
58	218749600		Screw,10 Pan Hd ,8-18 X .5				$ 5.15
70	218383201		Housing-dairy Compt		Appelez-nous	-
75	218431100		Bumper-dairy Door		Appelez-nous	-
76	218423700		Rack-microwave Dish				$ 301.79
77	218423501		Dish-microwave, (2)				$ 4.59
*95523	215008606		Label-nameplate,black		Appelez-nous	-
*95526	5315340712		Tape,adhesive ,12`` Long ,foam ,		Appelez-nous	-
*95527	215782300		Lock-handle Trim,snap-in				$ 34.49
*95528	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
*95529	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
