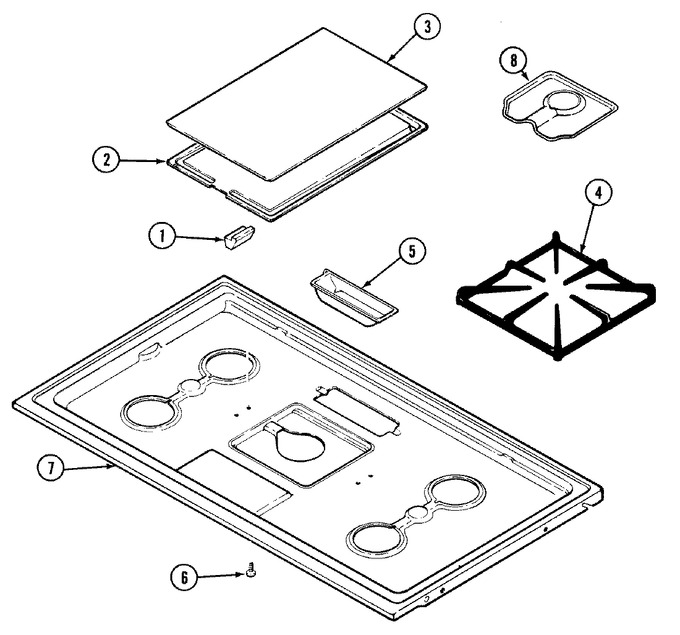

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8004P003-60 | Support | 01 |
|
- | ||||
| 2 | W10116823 | Kit, Griddle | 01 |
|
- | ||||
| 3 | 2005F002-30 | Cover, Griddle Stainless | 01 |
|
- | ||||
| 4 | 2003W026-00 | Grate (blk) | 01 |
|
- | ||||
| 5 | 3401F017-19 | Grease Pan | 01 |
|
- | ||||
| 6 | 7101P006-60 | Screw, Bkgd Trim Bwn | 01 |
|
- | ||||
| 7 | 2001F045-81 | Top, Main White | 01 |
|
- | ||||
| 8 | 1430283 | Drip Bowl Kit (accessory) (Replaces: 5401A433-60) | 01 |
|
$ 95.86 |
