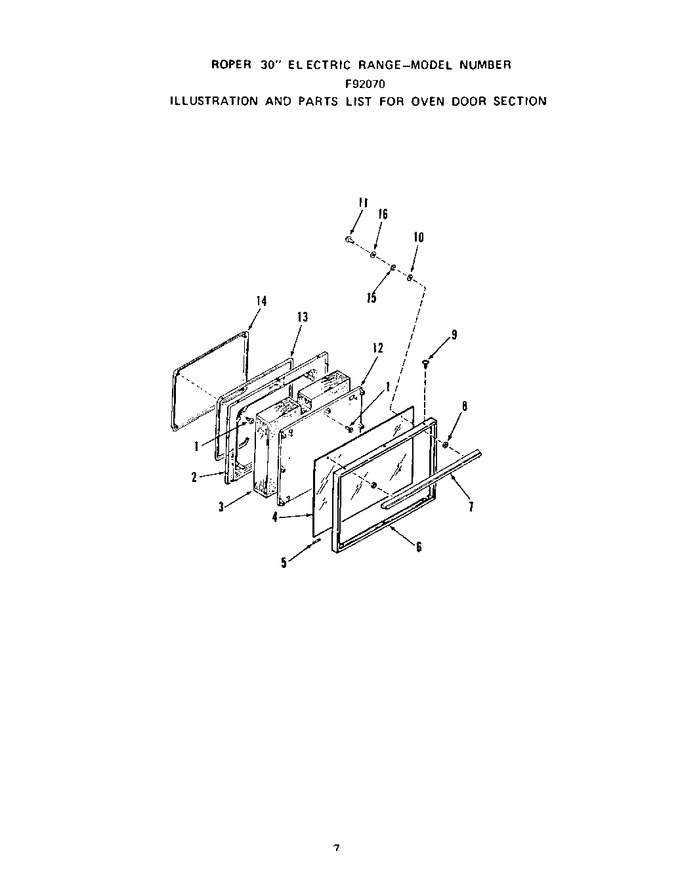

05 - Oven Door
06 - Wire Harness And Components
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 2 | 331624 | Lining |
|
- | |||||
| 3 | 335782 | Insulation |
|
- | |||||
| 4 | 326000 | Glass-outer |
|
- | |||||
| 5 | 112370 | Cushion |
|
- | |||||
| 6 | 332065 | Frame |
|
- | |||||
| 7 | 334848 | Handle |
|
- | |||||
| 8 | 333015 | Spacer-handle |
|
- | |||||
| 9 | 331704 | Screw |
|
- | |||||
| 10 | 333014 | Washer-fiber |
|
- | |||||
| 11 | 300864 | Screw 10-32x3/4`` |
|
- | |||||
| 12 | 325987 | Retainer-insulation |
|
- | |||||
| 13 | 292244 | Gasket |
|
- | |||||
| 14 | 331561 | Plug |
|
- | |||||
| 15 | 333015 | Spacer-glass |
|
- | |||||
| 16 | 99279 | Washer |
|
- |
