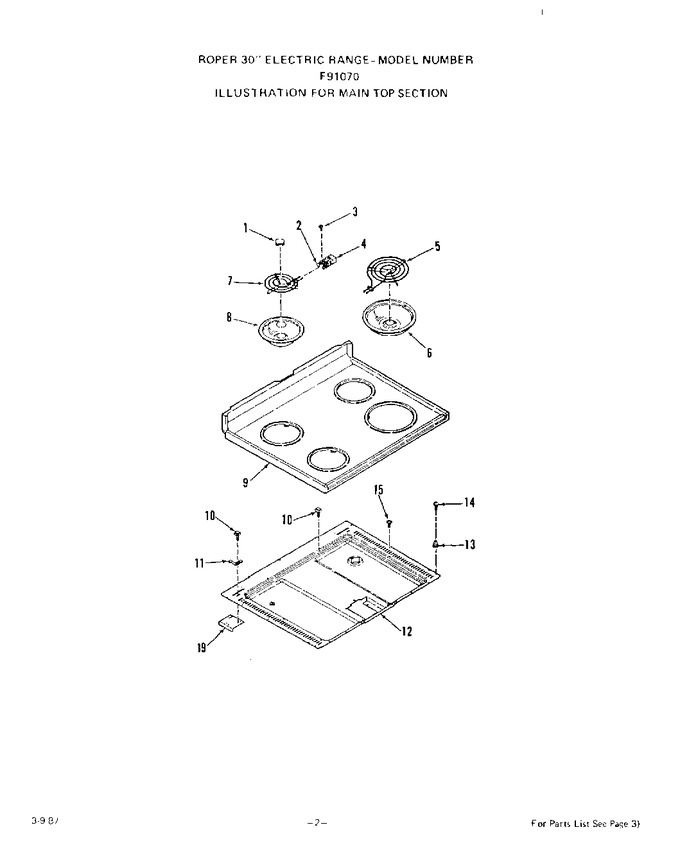

02 - Main Top


03 - Body


04 - Power Lock


05 - Oven Door


06 - Wire Harnesses And Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318586		Medallion (4 Req)		Appelez-nous	-
2	318872		Terminal Block Clip (4 Req)		Appelez-nous	-
3	299632		Screw 7-32x5/16``		Appelez-nous	-
4	330031		Terminal Block W/wires (4 Req)   (Replaces: 318960)			Immediately	$ 14.48
5	325503		8`` Surface Element		Appelez-nous	-
6	292975		8`` Burner Bowl		Appelez-nous	-
7	325507		6`` Surface Element		Appelez-nous	-
8	292974		6`` Burner Bowl		Appelez-nous	-
9	332042		Main Top (almond)		Appelez-nous	-
9	332043		Main Top (white)		Appelez-nous	-
10	327320		Screw 10-16x7/16``		Appelez-nous	-
11	333859		Hinge-main Top (left)		Appelez-nous	-
11	334089		Hinge-main Top (right)		Appelez-nous	-
12	333171		Burner Box Bottom		Appelez-nous	-
13	333892		Strike		Appelez-nous	-
14	327256		Screw 6-32x7/8``		Appelez-nous	-
15	335967		Screw 10-16x1/2``		Appelez-nous	-
19	335823		Reinforcement Plate		Appelez-nous	-
