Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 327320 Screw 10-16x7/16`` Appelez-nous -
2 331624 Lining Appelez-nous -
3 335782 Insulation Appelez-nous -
4 332068 Glass-outer Appelez-nous -
5 112370 Cushion Appelez-nous -
6 337765 Frame Appelez-nous -
7 334848 Handle Appelez-nous -
8 DE81-05147A Spacer, Door Handle   (Replaces: 107158) Special Order $ 205.79

9 331704 Screw Appelez-nous -
10 333014 Fiber Washer Appelez-nous -
11 300864 Screw 10-32x3/4`` Appelez-nous -
12 325987 Insulation Retainer Appelez-nous -
13 292244 Gasket Appelez-nous -
14 337031 Plug Lining Appelez-nous -
15 333015 Glass Spacer Appelez-nous -
16 99279 Washer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

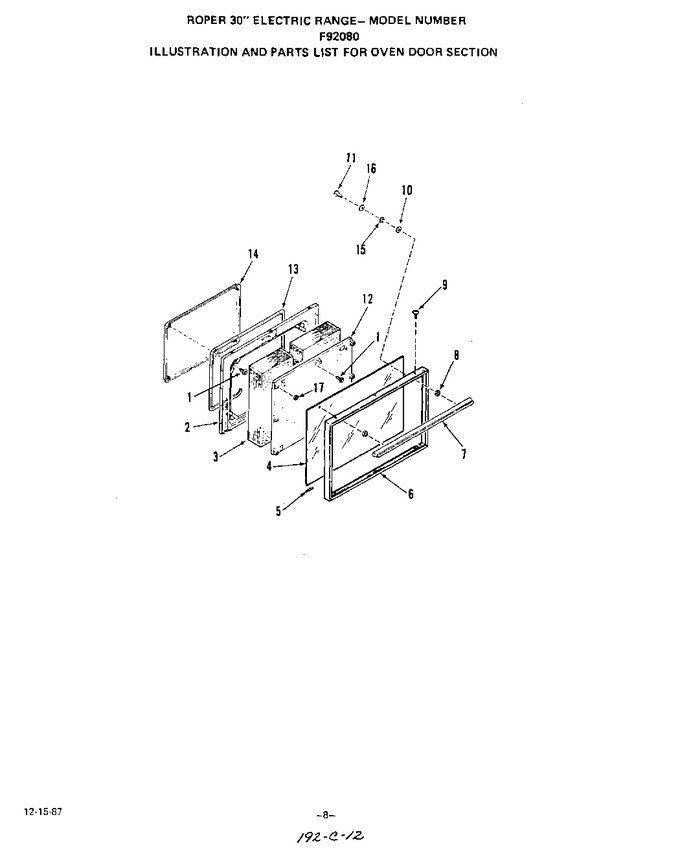

Diagram for F9108L0
