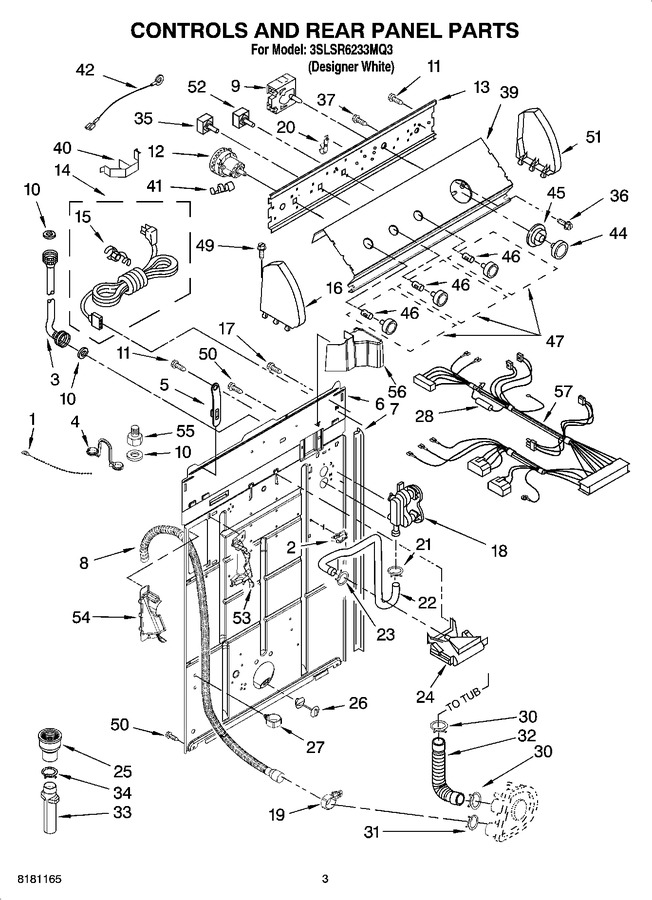

02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 7.11
2	3352944		Clip, Harness		Appelez-nous	-
3	WPW10615809		Hose, Water Inlet (blue)   (Replaces: 3949383)				$ 89.75
3	WPW10615831		Hose, Water Inlet (red)   (Replaces: 3949382)				$ 88.84
4	WP8577378		U-bend, Drain Hose   (Replaces: 8577378)				$ 7.17
5	WP8568314		Strap, Console (2)   (Replaces: 8568314)				$ 7.00
6	8318015		Panel, Rear				$ 148.59
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 23.63
8	WPW10096921		Drain Hose Assembly (includes Items 19 & 27)   (Replaces: 8559374)			Immediately	$ 60.64
9	3950560		Timer, Control (50 Hz.) (motor Not A Service Part)				$ 181.26
10	WP16123		Washer, Water Inlet Hose (1-1/16 X 5/8)   (Replaces: 3976300)				$ 6.93
11	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.04
12	W10820051		Switch, Water Level   (Replaces: 3366848)			Immediately	$ 152.71
13	WP3948608		Bracket, Control   (Replaces: 3948608)				$ 104.57
14	8559413		Cord, Power		Appelez-nous	-
15	8559337		Strain Relief, Power Cord		Appelez-nous	-
16	8271369		Cap, End (l.h.)		Appelez-nous	-
17	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.26
18	WP3360397		Valve, Water Mixing   (Replaces: 3360397)				$ 259.24
19	8541668		Clamp, Hose				$ 19.13
20	8317975		Retainer, Harness				$ 5.86
21	WP596669		Clamp, Hose   (Replaces: 301958)			Immediately	$ 7.56
22	WP3357328		Hose, Vacuum Break   (Replaces: 8541607)			Immediately	$ 22.30
23	WP596669		Clamp, Hose   (Replaces: 370450)			Immediately	$ 7.56
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 45.41
25	WP8577375		Coupler, Drain Hose   (Replaces: 8577375)				$ 7.26
26	WP8519200		Support, Rear Panel   (Replaces: 8519200)			Immediately	$ 17.01
27	8541667		Clamp, Hose				$ 5.86
28	WPW10111181		Fuse (in Harness)   (Replaces: W10111181)				$ 29.84
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.03
31	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 7.55
32	285871		Hose, Pump To Tub (includes Item 30)   (Replaces: 3951449)			Immediately	$ 24.01
33	3363920A		Adapter-drain Hose   (Replaces: 3363920)				$ 7.91
34	WP285655		Clamp, Hose (2)   (Replaces: 285655)			Immediately	$ 7.55
35	WPW10168256		Switch, Rotary (temperature)   (Replaces: 661612)			Immediately	$ 115.93
36	WP3400818		Screw, Timer Mounting   (Replaces: 3400818)				$ 7.16
37	3179795		Screw, Ground		Appelez-nous	-
39	8539599		Panel, Console		Appelez-nous	-
40	8055003		Clip, Harness & Pressure Hose				$ 36.24
41	W10113937		Clip, Grounding   (Replaces: 357572)				$ 9.75
42	3398893		Wire, Ground		Appelez-nous	-
44	W10807860		Knob, Timer   (Replaces: 3957824)			Immediately	$ 44.97
45	WP3957849		Dial, Timer   (Replaces: 3957849)				$ 41.20
46	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.03
47	WP3957799		Knob, Control   (Replaces: 3957799)			Immediately	$ 47.20
49	WP388326		Screw, 8-18 X 1.25 (panel To Top)   (Replaces: 388326)				$ 7.30
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.04
51	8271363		Cap, End (r.h.)		Appelez-nous	-
52	WPW10168262		Switch, Rotary   (Replaces: 3949187)				$ 116.78
53	WPW10096921		Bucket, Drain Hose (left Half)   (Replaces: 8541669)			Immediately	$ 60.64
54	WPW10096921		Bucket, Drain Hose (right Half)   (Replaces: 8541658)			Immediately	$ 60.64
55	WP3357397		Adapter, Water Inlet Hose   (Replaces: 3357397)				$ 80.33
56	8314879		Shield, Inlet Valve		Appelez-nous	-
57	3956707		Harness, Wiring (for Detail See Pages 9 & 10)		Appelez-nous	-
