01 - Backguard , Lit/optional

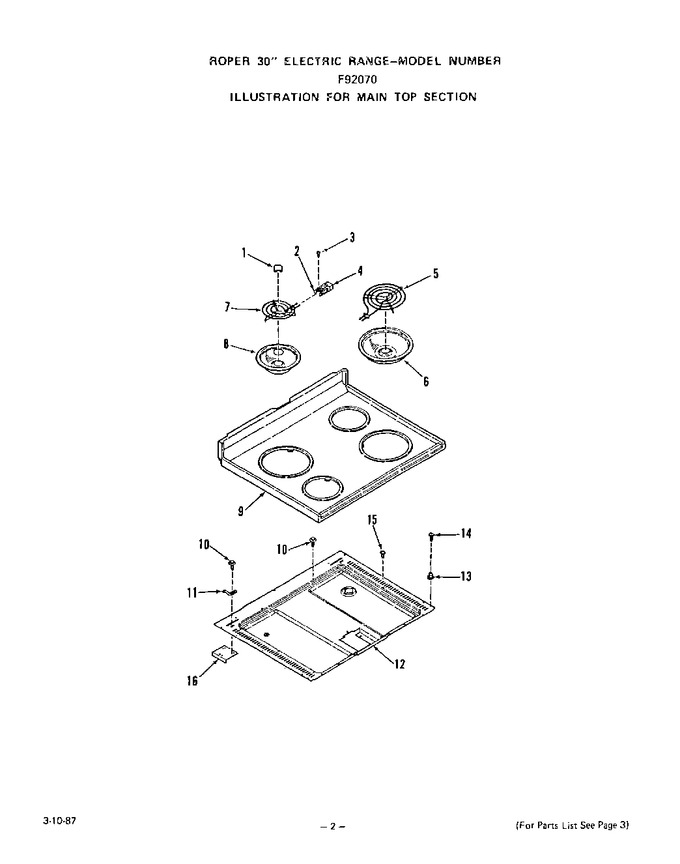

02 - Main Top
03 - Body
04 - Power Lock
05 - Oven Door
06 - Wire Harness And Components
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318586 | Medallion (4 Req) |
|
- | |||||
| 2 | 318872 | Terminal Block Clip (4 Req) |
|
- | |||||
| 3 | 299632 | Screw 7-32x5/16`` |
|
- | |||||
| 4 | 330031 | Terminal Block W/wires (4 Req) (Replaces: 318960) |
|
Immediately | $ 14.48 | ||||
| 5 | 325503 | 8`` Surface Element |
|
- | |||||
| 6 | 292975 | 8`` Burner Bowl |
|
- | |||||
| 7 | 325507 | 6`` Surface Element |
|
- | |||||
| 8 | 292974 | 6`` Burner Bowl |
|
- | |||||
| 9 | 332047 | White |
|
- | |||||
| 9 | 332048 | Chrome |
|
- | |||||
| 9 | 332251 | Almond |
|
- | |||||
| 10 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 11 | 334089 | Right |
|
- | |||||
| 11 | 333859 | Left |
|
- | |||||
| 12 | 333171 | Burner Box Bottom |
|
- | |||||
| 13 | 333892 | Strike |
|
- | |||||
| 14 | 327256 | Screw 6-32x7/8`` |
|
- | |||||
| 15 | 335967 | Screw 10-16x1/2`` |
|
- | |||||
| 16 | 335823 | Reinforcement Plate |
|
- |
