SELECT A DIAGRAM

02 - Backguard , Lit/optional


03 - Main Top


04 - Body


05 - Door Lock


06 - F91080


07 - F92080


08 - Wire Harness And Components

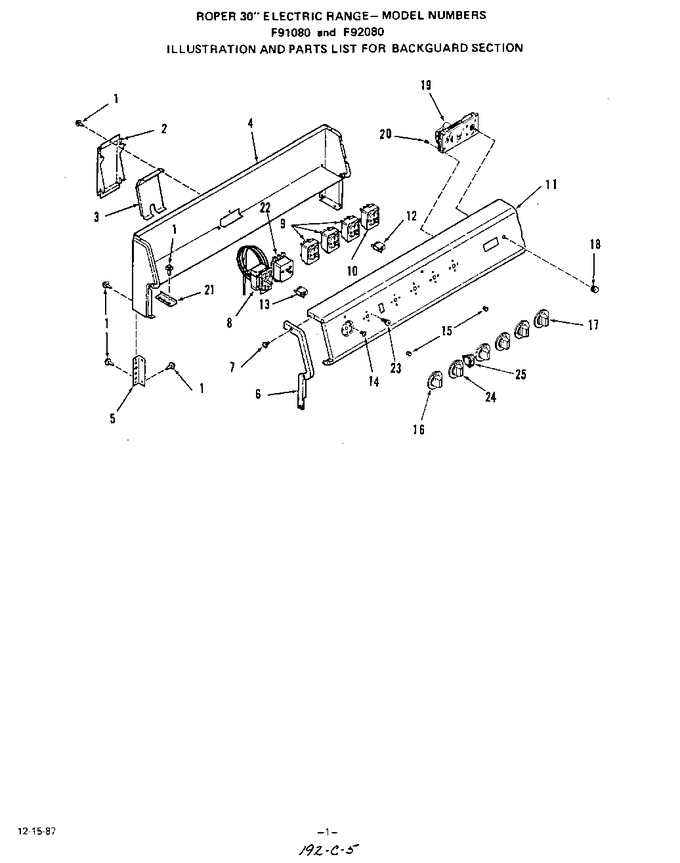

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327320		Screw 10-16x7/16``		Appelez-nous	-
2	334363		Wire Raceway		Appelez-nous	-
3	334364		Raceway Cover		Appelez-nous	-
4	334199		Backguard Body		Appelez-nous	-
5	335120		Backguard Support		Appelez-nous	-
6	335075		End Cap (left)		Appelez-nous	-
6	335074		End Cap (right)		Appelez-nous	-
7	329382		Screw 6-20x3/8``		Appelez-nous	-
8	334557		Thermostat		Appelez-nous	-
9	5500-200		Infinite Switch (lt. Front, Rt. Rear, Lt. Rear)   (Replaces: 334887)			Immediately	$ 54.85
10	5500-200		Infinite Switch (rt. Front)   (Replaces: 334888)			Immediately	$ 54.85
11	338564		Control Panel (almond (model F9208l0))		Appelez-nous	-
11	338551		Control Panel (white (model F9208w0))		Appelez-nous	-
11	338563		Control Panel (almond (model F9108l0))		Appelez-nous	-
11	338549		Control Panel (white (model F9108w0))		Appelez-nous	-
12	331716		Indicator Light		Appelez-nous	-
13	331717		Indicator Light		Appelez-nous	-
14	292605		Screw 8-32x3/16``		Appelez-nous	-
15	331705		Lens-indicator Light		Appelez-nous	-
16	334094		Thermostat Knob		Appelez-nous	-
17	337360		Infinite Knob		Appelez-nous	-
18	339197		Clock Knob		Appelez-nous	-
19	336931		Clock W/lens		Appelez-nous	-
20	78153		Screw 6-32x5/16``		Appelez-nous	-
21	335977		Cleat		Appelez-nous	-
22	331093		Timer		Appelez-nous	-
23	315617		Screw 4-24x1/4``		Appelez-nous	-
24	338373		Timer Knob		Appelez-nous	-
25	334649		Light Switch (model F92080)		Appelez-nous	-
	336943		Xclock Lens		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
