01 - Base, Pump, Motor & Components

Diagram for 02 - Cabinet, Water Valve, Hoses & Frnt Panel
02 - Cabinet, Water Valve, Hoses & Frnt Panel

Diagram for 03 - Clutch, Brake & Belts
03 - Clutch, Brake & Belts

Diagram for 04 - Control Panel
04 - Control Panel

Diagram for 05 - Orbital Transmission (series 10)
05 - Orbital Transmission (series 10)

Diagram for 06 - Top Cover, Console & Lid Switch
06 - Top Cover, Console & Lid Switch

Diagram for 07 - Top Cover, Console & Lid Switch (ser 11)
07 - Top Cover, Console & Lid Switch (ser 11)

Diagram for 08 - Transmission
08 - Transmission

Diagram for 09 - Tub, Agitator, Mounting Stem & Seal
09 - Tub, Agitator, Mounting Stem & Seal


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 205033 Timer Motor 120-60 00 Appelez-nous -
2 206216 Water Temperature Switch 00 Appelez-nous -
3 206217 Speed Control Switch 00 Appelez-nous -
4 206221 Water Level Switch----na 00 Appelez-nous -
5 206225 Timer 00 Special Order $ 170.27

6 206850 Control Panel 00 Appelez-nous -
8 211065 Spring, Timer Knob 00 Special Order $ 5.70

10 211605 Retainer, Timer Knob 00 Appelez-nous -
12 WP3400014 Screw-timer To Control Pane   (Replaces: 213966) 00 Special Order $ 6.98

13 214815 End Cap F/control Panel-lh 00 Appelez-nous -
14 214816 End Cap F/control Panel-rh 00 Appelez-nous -
15 214818 Back Up Plate 00 Appelez-nous -
17 214872 Palnut, End Cap 00 Appelez-nous -
18 214894 Fastener, End Cap 00 Appelez-nous -
19 214897 Pad, Control Panel 00 Appelez-nous -
20 215161 Timer Dial Indicator 00 Appelez-nous -
21 215162 Timer Knob 00 Appelez-nous -
22 215163 Cap For Knob 00 Appelez-nous -
NI 214869 Clip For Back Up Plate 00 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

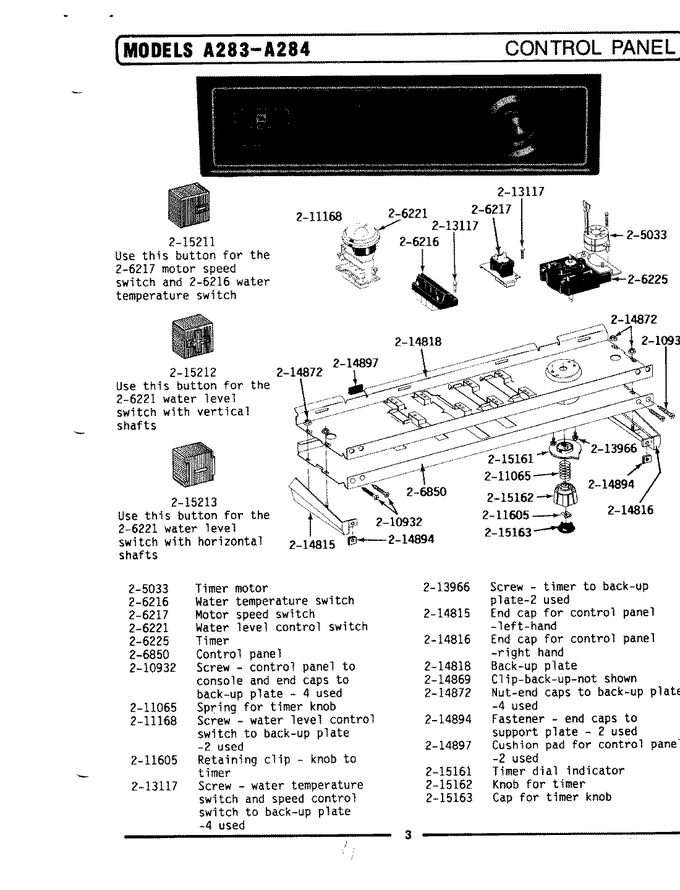

Diagram for GA283
