Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 335942 Screw 4-40 X 11/16`` Appelez-nous -
2 335934 Cover-lock Appelez-nous -
3 316849 Screw-10-32x1/2`` Appelez-nous -
4 329171 Insulator-switch Appelez-nous -
5 97411 Screw 8-32x1/4`` Special Order $ 36.36

6 335177 Micro Switch Appelez-nous -
7 306638 Nut-hex 4-40 Appelez-nous -
8 335929 Switch Lever Appelez-nous -
9 333787 Retainer-latch Handle Appelez-nous -
10 333792 Handle-latch Appelez-nous -
11 335738 Knob-lock Appelez-nous -
12 328474 Clip-knob Appelez-nous -
13 313075 Spring-lock Handle Appelez-nous -
14 327320 Screw 10-16x7/16`` Appelez-nous -
15 333781 Latch Asm. Appelez-nous -
16 338865 Insulation Retainer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

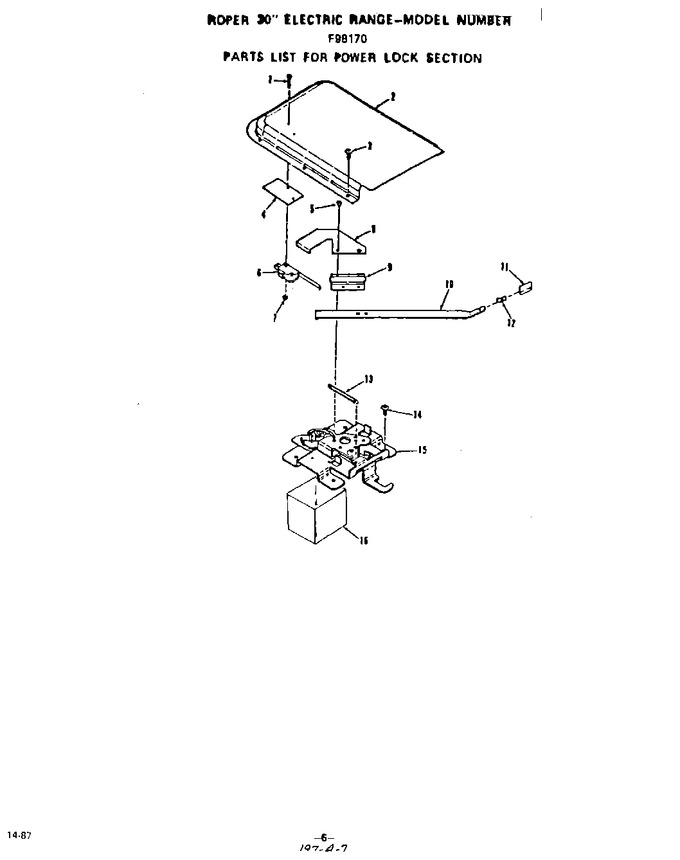

Diagram for F9817W0
