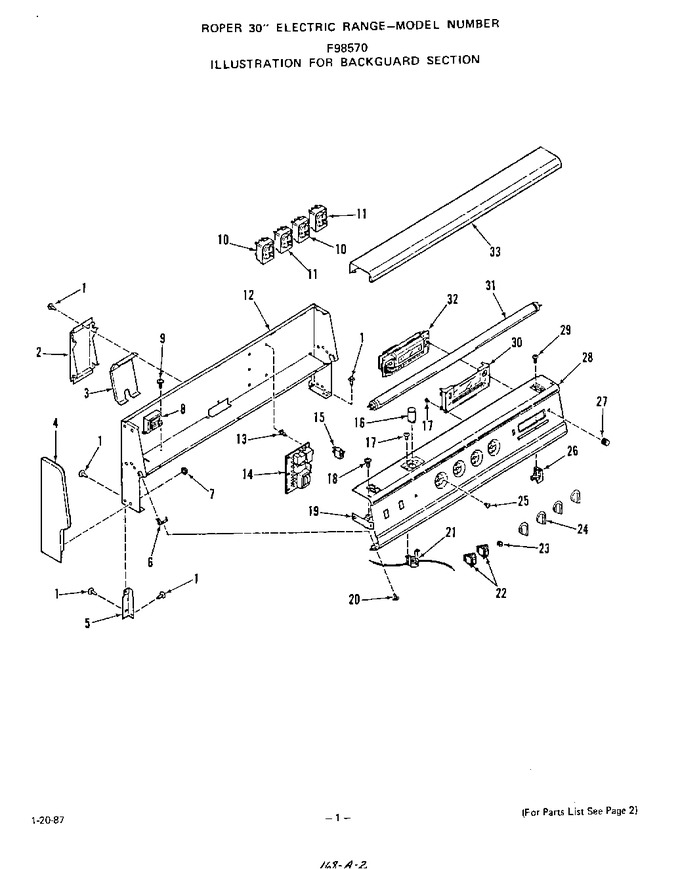

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327320		Screw 10-16x7/16``		Appelez-nous	-
2	334363		Wire Raceway		Appelez-nous	-
3	334364		Raceway Cover		Appelez-nous	-
4	333761		Left		Appelez-nous	-
4	333760		Right		Appelez-nous	-
5	334338		Left		Appelez-nous	-
5	334337		Right		Appelez-nous	-
6	334375		Backguard Clip		Appelez-nous	-
7	335776		Pal Nut		Appelez-nous	-
8	98186		Ballast		Appelez-nous	-
9	329382		Screw 6-20x3/8``		Appelez-nous	-
10	5500-200		Infinite Switch (rt. Front Or Lt. Rear)   (Replaces: 337035)			Immediately	$ 54.85
11	5500-200		Infinite Switch (lt. Front Or Rt. Rear)   (Replaces: 336119)			Immediately	$ 54.85
12	334172		Backguard Body		Appelez-nous	-
13	334955		Circuit Board Spacer		Appelez-nous	-
14	335245		Circuit Board W/relay		Appelez-nous	-
15	331716		Indicator Light		Appelez-nous	-
16	334104		Lamp Starter		Appelez-nous	-
17	78153		Screw 6-32x5/16``		Appelez-nous	-
18	326974		Screw		Appelez-nous	-
19	335667		Backguard Bracket		Appelez-nous	-
20	321665		Screw 10-32x1/2``		Appelez-nous	-
21	334924		Starter Base		Appelez-nous	-
22	334649		Switch		Appelez-nous	-
23	331705		Lens-indicator Light		Appelez-nous	-
24	334562		Infinite Knob		Appelez-nous	-
25	78565		Screw 8-32x3/16``		Appelez-nous	-
26	334173		Lamp Holder		Appelez-nous	-
27	334914		Clock/oven Control Knob		Appelez-nous	-
28	335927		Control Panel		Appelez-nous	-
29	89022		Screw 6-32x3/8``		Appelez-nous	-
30	334898		Clock/oven Control Lens		Appelez-nous	-
31	334193		Fluorescent Lamp		Appelez-nous	-
32	336678		Clock/oven Control		Appelez-nous	-
33	334176		Canopy Panel		Appelez-nous	-
