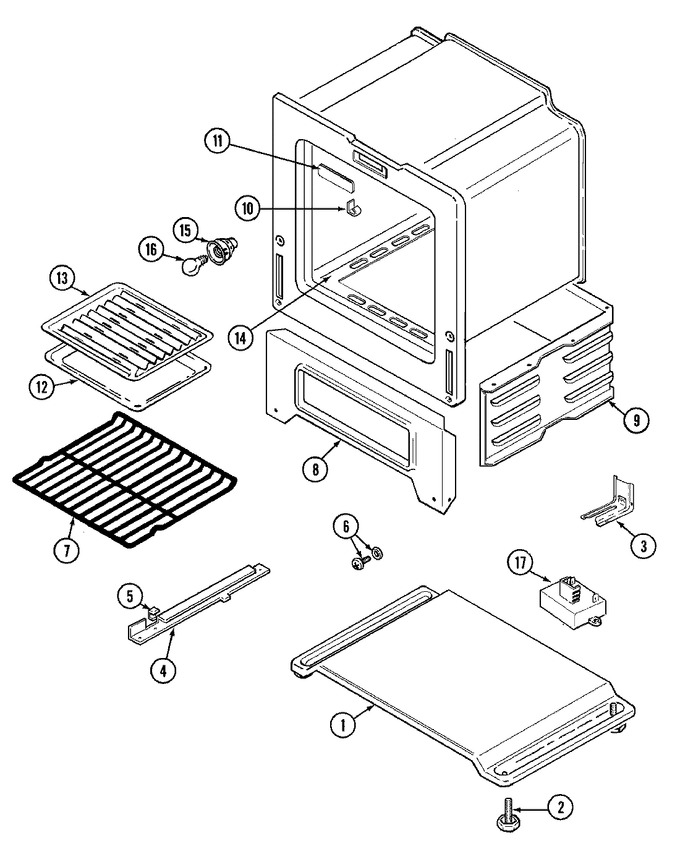

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7103P125-60 | Nut | 16 |
|
- | ||||
| 1 | 74001448 | Base | 16 |
|
- | ||||
| 2 | 7101P306-60 | Leg, Leveling | 16 |
|
- | ||||
| 3 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 16 |
|
Immediately | $ 4.69 | |||
| 3 | WP7101P485-60 | Screw (Replaces: 7101P344-60) | 16 |
|
$ 26.33 | ||||
| 4 | 3404F021-51 | Track, Drawer (lt) | 16 |
|
- | ||||
| 4 | 3404F018-51 | Track, Drawer (rt) | 16 |
|
- | ||||
| 4 | W11233072 | Screw (Replaces: 7101P290-60) | 16 |
|
Immediately | $ 12.62 | |||
| 5 | 8016P010-60 | Glide, Broiler Track | 16 |
|
- | ||||
| 6 | WP74003976 | Screw W/washer (Replaces: 7101P124-60) | 16 |
|
$ 6.47 | ||||
| 7 | WPW10282492 | Rack, Oven (Replaces: 7801P047-60) | 16 |
|
Immediately | $ 65.15 | |||
| 8 | 2201F077-19 | Front, Broiler | 16 |
|
- | ||||
| 9 | W11233072 | Screw (Replaces: 7101P290-60) | 16 |
|
Immediately | $ 12.62 | |||
| 9 | 4016F044-45 | Sides, Broiler | 16 |
|
- | ||||
| 10 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 16 |
|
Immediately | $ 11.07 | |||
| 11 | 7718P013-60 | Cover, Door Lock | 16 |
|
- | ||||
| 12 | Y3401F02019 | Pan, Broil | 16 |
|
- | ||||
| 13 | Y3413F01619 | Insert, Broil Pan | 16 |
|
- | ||||
| 14 | 3601F239-45 | Baffle, Oven Bottom | 16 |
|
- | ||||
| 14 | 5504M004-19 | Bottom, Oven Assy. | 16 |
|
- | ||||
| 15 | WP7407P182-60 | Receptacle, Bulb (Replaces: 7407P088-60) | 16 |
|
Immediately | $ 66.10 | |||
| 16 | WP67002552 | Lamp, Oven (Replaces: 7407P027-60) | 16 |
|
Immediately | $ 10.58 | |||
| 17 | W11233072 | Screw (Replaces: 7101P147-60) | 16 |
|
Immediately | $ 12.62 | |||
| 17 | 7510P046-60 | Regulator, Voltage | 16 |
|
- |
