SELECT A DIAGRAM
01 - Body

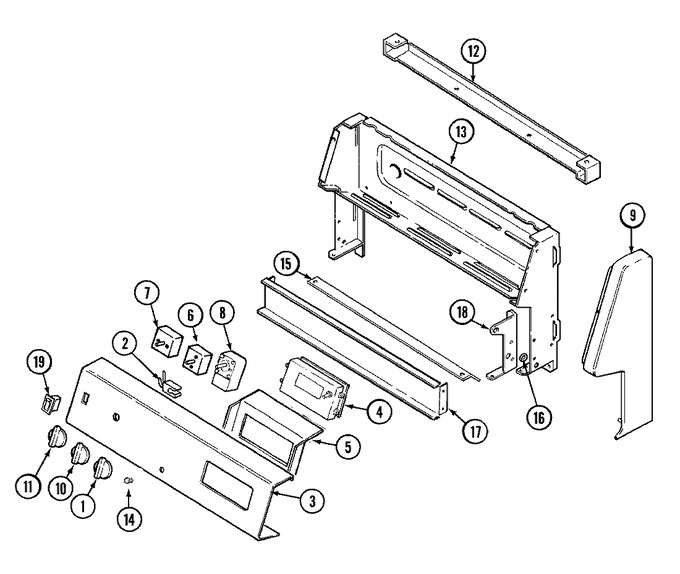

02 - Control Panel
03 - Door/drawer
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7731P081-60 | Knob, Switch (wht) | 13 |
|
- | ||||
| 2 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 13 |
|
$ 106.11 | ||||
| 3 | 7703P644-60 | Panel, Control (wht) | 13 |
|
- | ||||
| 3 | 7101P348-60 | Screw (wht) | 13 |
|
- | ||||
| 3 | 7719P067-60 | Nameplate | 13 |
|
- | ||||
| 4 | 74001474 | Clock (wht) | 13 |
|
- | ||||
| 4 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 13 |
|
Immediately | $ 12.62 | |||
| 5 | 3801F340-45 | Bracket, Clock | 13 |
|
- | ||||
| 5 | 7101P348-60 | Screw (wht) | 13 |
|
- | ||||
| 6 | WP7403P255-60 | Switch, Selector (Replaces: 74002929) | 29 |
|
$ 131.41 | ||||
| 6 | WP7403P255-60 | Switch, Selector (Replaces: 7403P255-60) | 13 |
|
$ 131.41 | ||||
| 7 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 13 |
|
Immediately | $ 57.78 | |||
| 7 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 13 |
|
Immediately | $ 6.26 | |||
| 7 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 13 |
|
Immediately | $ 35.10 | |||
| 8 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 13 |
|
Immediately | $ 6.26 | |||
| 8 | 7404P105-60 | Thermostat | 13 |
|
$ 208.86 | ||||
| 9 | 74002709 | End Cap, Cntrl Panel (rt-wht) | 28 |
|
- | ||||
| 9 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 13 |
|
Immediately | $ 12.62 | |||
| 9 | 7726P086-60 | End Cap (rt-wht) | 13 |
|
- | ||||
| 9 | 7726P085-60 | End Cap (lt-wht) | 13 |
|
- | ||||
| 9 | 74002710 | End Cap, Cntrl Panel (lt-wht) | 28 |
|
- | ||||
| 10 | 7731P081-60 | Knob, Switch (wht) | 13 |
|
- | ||||
| 11 | 7731P081-60 | Knob, Switch (wht) | 13 |
|
- | ||||
| 12 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 13 |
|
Immediately | $ 12.62 | |||
| 12 | 4001F064-51 | Extension, Control Panel | 13 |
|
- | ||||
| 13 | 4001F091-51 | Housing, Control Panel | 13 |
|
- | ||||
| 13 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 13 |
|
Immediately | $ 12.62 | |||
| 14 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 13 |
|
$ 6.73 | ||||
| 15 | 3604F201-80 | Shield, Sight | 13 |
|
- | ||||
| 15 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 13 |
|
Immediately | $ 12.62 | |||
| 16 | WP3195558 | Nut, Speed (Replaces: 7103P044-60) | 13 |
|
$ 7.68 | ||||
| 17 | 3802F088-51 | Brace, Control Panel | 13 |
|
- | ||||
| 18 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 13 |
|
Immediately | $ 12.62 | |||
| 18 | 3418D097-60 | Hinge, Main Top (lt) | 13 |
|
- | ||||
| 18 | 3418D098-60 | Hinge, Main Top (rt) | 13 |
|
- | ||||
| 19 | 7403P314-60 | Switch, Rocker (wht) | 13 |
|
- | ||||
| NI | 5175D049-60 | Harness, Panel To Top | 13 |
|
- | ||||
| NI | 5125A371-60 | Wires, Loose | 13 |
|
- | ||||
| NI | 74001475 | Harness, Control Panel | 13 |
|
- | ||||
| NI | 8113P023-60 | Manual, Use & Care | 13 |
|
- | ||||
| NI | 16002079 | Guide, Quick Ref - Admiral | 13 |
|
- |
