SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Oven/base


05 - Top Assembly


06 - Wiring Information

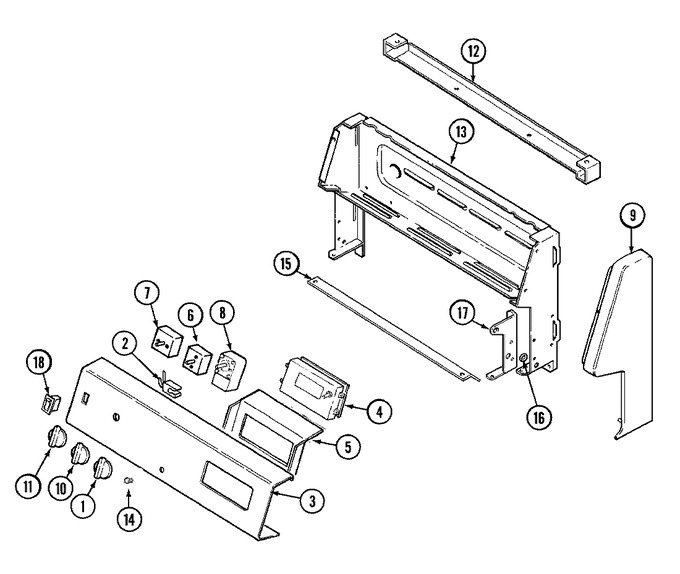

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7735P037-60		Knob, Thermostat (blk)----na	24	Appelez-nous	-
2	W10852510		Light, Indicator   (Replaces: 7407P102-60)	24			$ 106.11
3	WPY706189		Screw (8abx3/8-blk)   (Replaces: 7101P347-60)	24		Immediately	$ 6.47
3	7719P062-60		Nameplate, Admiral (blk)	24	Appelez-nous	-
3	7703P641-60		Panel, Control (blk)----na	24	Appelez-nous	-
4	7602P122-60		Clock (blk)	24	Appelez-nous	-
5	3801F340-45		Bracket, Clock	24	Appelez-nous	-
5	WPY706189		Screw (8abx3/8-blk)   (Replaces: 7101P347-60)	24		Immediately	$ 6.47
6	WP7101P309-60		Screw   (Replaces: 7101P309-60)	24		Immediately	$ 6.26
6	WP7403P255-60		Switch, Selector   (Replaces: 7403P255-60)	24			$ 131.41
7	WP7403P238-60		Switch, Infinite (sml Element)   (Replaces: 7403P238-60)	24		Immediately	$ 57.78
7	WP7101P309-60		Screw   (Replaces: 7101P309-60)	24		Immediately	$ 6.26
7	WP7403P239-60		Switch, Infinite (lrg Element)   (Replaces: 7403P239-60)	24		Immediately	$ 35.10
8	7404P105-60		Thermostat	24			$ 208.86
8	WP7101P309-60		Screw   (Replaces: 7101P309-60)	24		Immediately	$ 6.26
9	74001352		End Cap (lt-blk)	24	Appelez-nous	-
9	W11233072		Screw   (Replaces: 7101P147-60)	24		Immediately	$ 12.62
9	74001355		End Cap (rt-blk)	24	Appelez-nous	-
10	7739P043-60		Knob, Selector (blk)	24	Appelez-nous	-
11	7737P035-60		Knob, Infinite (blk)	24	Appelez-nous	-
12	4001F064-51		Extension, Control Panel	24	Appelez-nous	-
12	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	24		Immediately	$ 12.62
13	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	24		Immediately	$ 12.62
13	74002162		Housing, Control Panel	24	Appelez-nous	-
14	W11690131		Lens, Indicator Light   (Replaces: 7730P012-60)	24			$ 6.73
15	3604F201-80		Shield, Sight	24	Appelez-nous	-
15	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	24		Immediately	$ 12.62
16	WP3195558		Nut, Speed   (Replaces: 7103P044-60)	24			$ 7.68
17	3418D098-60		Hinge, Main Top (rt)	24	Appelez-nous	-
17	3418D097-60		Hinge, Main Top (lt)	24	Appelez-nous	-
17	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	24		Immediately	$ 12.62
18	7403P067-60		Switch, Rocker (blk)	24			$ 91.35
NI	74001475		Harness, Control Panel	24	Appelez-nous	-
NI	74001013		Harness, Control/top	24	Appelez-nous	-
NI	74002469		Manual, Use & Care	24	Appelez-nous	-
NI	16002079		Guide, Quick Ref - Admiral	24	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
