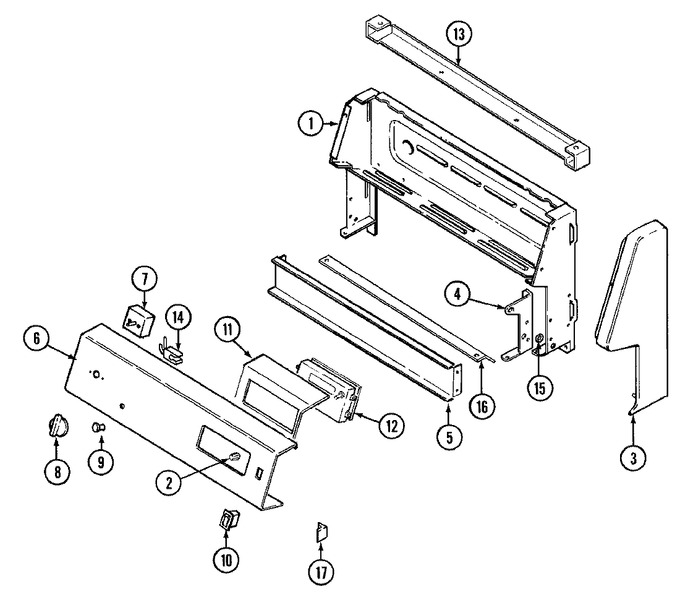

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4001F091-51 | Housing, Control Panel | 10 |
|
- | ||||
| 2 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P431-60) | 10 |
|
$ 12.13 | ||||
| 3 | 7726P059-60 | End Cap (lt-blk) | 10 |
|
- | ||||
| 3 | 7726P060-60 | End Cap (rt-blk) | 10 |
|
- | ||||
| 4 | 3807F454-51 | Support, Main Top (lt) | 10 |
|
- | ||||
| 4 | 3807F453-51 | Support, Main Top (rt) | 10 |
|
- | ||||
| 5 | 3802F088-51 | Brace, Control Panel | 10 |
|
- | ||||
| 6 | 7703P575-60 | Panel, Control | 10 |
|
- | ||||
| 7 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 7 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 7 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 8 | 7731P082-60 | Knob, Therm/burner (blk) | 10 |
|
- | ||||
| 9 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 10 |
|
$ 6.73 | ||||
| 10 | 7403P067-60 | Switch, Rocker (blk) | 10 |
|
$ 91.35 | ||||
| 11 | 3801F338-45 | Bracket, Clock | 10 |
|
- | ||||
| 11 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | 74001832 | Clock (120v 60/50hz) | 18 |
|
- | ||||
| 12 | 7601P270-60 | Clock (blk) | 10 |
|
- | ||||
| 12 | WP59002061 | Screw, Switch (Replaces: 7101P148-60) | 10 |
|
$ 6.98 | ||||
| 13 | 4001F064-51 | Extension, Control Panel | 10 |
|
- | ||||
| 14 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 10 |
|
$ 106.11 | ||||
| 15 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 10 |
|
$ 7.68 | ||||
| 16 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 16 | 3604F201-80 | Shield, Sight | 10 |
|
- | ||||
| 17 | 8010P083-60 | Spacer | 10 |
|
- | ||||
| NI | 5125A381-60 | Harness, Loose Wire | 10 |
|
- | ||||
| NI | 5170P205-60 | Harness, Sensor/lock | 10 |
|
- | ||||
| NI | 5175D049-60 | Harness, Panel To Top | 10 |
|
- | ||||
| NI | 8113P068-60 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- |
