01 - Base Assembly


02 - Cabinet


03 - Clutch, Brake & Belts


04 - Control Panel


05 - Motor & Pump Assembly


06 - Top Cover


07 - Transmission


08 - Tub Assembly


09 - Tub Cover

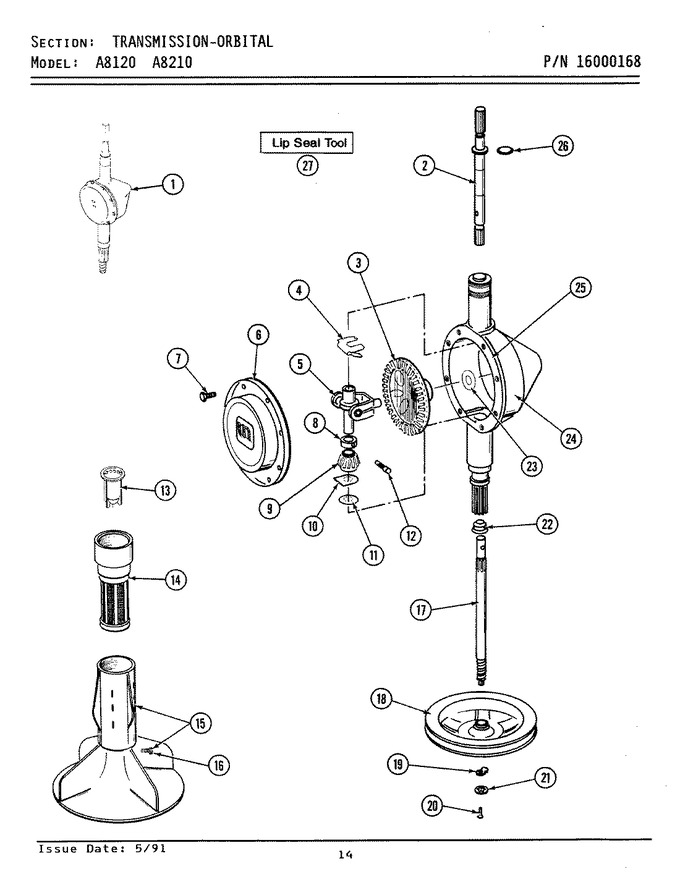

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	206708		Transmission	A0	Appelez-nous	-
2	207153		Shaft, Agitator (w/spring)	A0	Appelez-nous	-
3	206713		Gear, Bevel	A0	Appelez-nous	-
4	WP215581		Spring, Agitator Shaft   (Replaces: 215581)	A0			$ 7.47
5	206685		Block, Torque And Yoke Assembl	A0	Appelez-nous	-
6	206628		Cover, Transmission	A0	Appelez-nous	-
7	215417		Screw, Transmission Cover	A0	Appelez-nous	-
8	215415		Collar, Lower	A0	Appelez-nous	-
9	WPW10221114		Pinion   (Replaces: 215401)	A0			$ 58.63
10	WP215395		Plate, Clutch   (Replaces: 215395)	A0		Immediately	$ 6.79
11	WP6-2114830		Washer, Splined   (Replaces: 211483)	A0			$ 7.05
12	WPY206629		Pin, Collar   (Replaces: Y206629)	A0			$ 7.88
13	215733		Dispensing Cup	A0	Appelez-nous	-
14	WPY207427		Lint Filter Shallow   (Replaces: Y207427)	A0			$ 139.92
15	207538		Agitator W/lock Screw	A0			$ 102.74
16	206478		Screw & Washer For Agitator	A0	Appelez-nous	-
17	215411		Shaft, Center	A0	Appelez-nous	-
18	WP6-2301530		Pulley, Drive   (Replaces: 211059)	A0			$ 178.73
19	WP211089		Lug, Stop   (Replaces: 211089)	A0			$ 10.16
20	WP912618		Screw,stop Lug(center Shaft)   (Replaces: 211375)	A0			$ 6.98
21	WP22003555		Washer, Lock   (Replaces: 211090)	A0			$ 19.26
22	206602		Seal, Lip (center Shaft)	A0	Appelez-nous	-
23	215394		Washer, Bevel Gear	A0	Appelez-nous	-
24	206625		Housing, Transmission	A0	Appelez-nous	-
25	W10841140		Silastic,adh.sealant   (Replaces: Y058700)	A0		Immediately	$ 24.92
26	210690		Seal, Rubber	A0			$ 13.19
27	038228		Lip Seal Tool	A0	Appelez-nous	-
