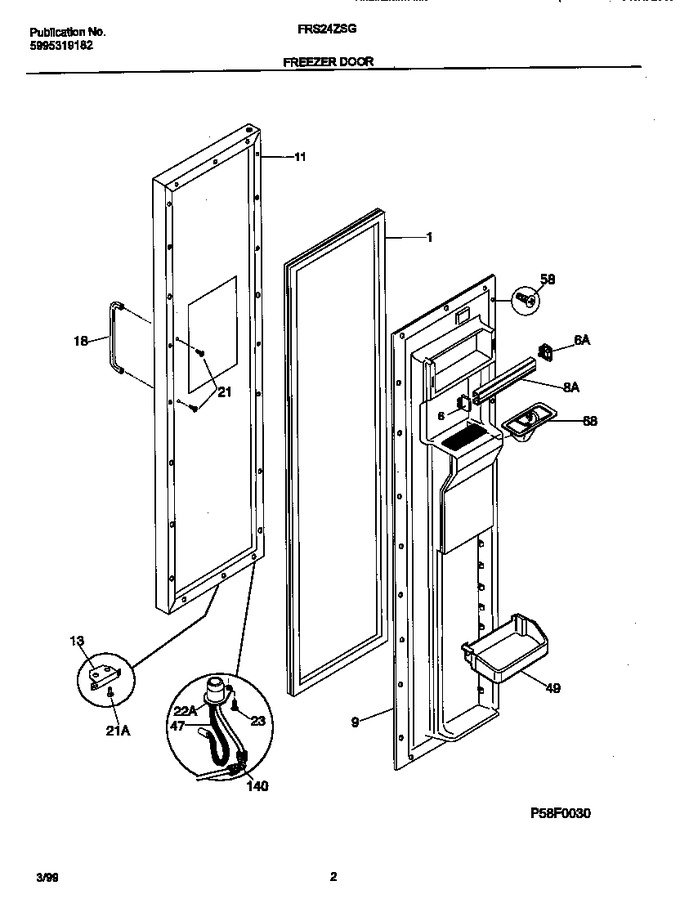

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215734323		Gasket-frzr Door, Black, Magnetic				$ 215.25
6	5303297813		Support-door Rack, Lh				$ 49.77
6	5303297814		Support-door Rack, Rh				$ 52.50
8	215474038		Rack-door		Appelez-nous	-
9	218510501		Panel-inner Door, Frzr		Appelez-nous	-
11	5303917677		Panel-frzr Door, Stainless Steel, W/foam Insulatn		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
18	218756501		Handle-door, Stainless Steel, With Insert		Appelez-nous	-
21	218709100		Screw-handle Mtg, Hex Head, 10-32 X 1/2		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	215615300		Bushing-door,bronze		Appelez-nous	-
23	5303001020		Screw, Cr Flat Head, 8-32(d) X 1/2		Appelez-nous	-
47	218896201		Harness-wiring,frzr Door		Appelez-nous	-
49	218592309		Bin-door,2 Liter ,with Trim		Appelez-nous	-
58	218749600		Screw,10 Pan Hd ,8-18 X .5				$ 5.15
68	218020600		Chute-ice		Appelez-nous	-
140	218518700		Elbow-water Tube				$ 61.22
*47760	215598900		Washer-flat, .691 X 1 X .05, Zinc, I&w Hinge Brkt		Appelez-nous	-
*47761	215361200		Foam Strip, Handle Mtg Hole		Appelez-nous	-
*47762	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
*47763	218789501		Heater-lower Flange		Appelez-nous	-
*47764	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
