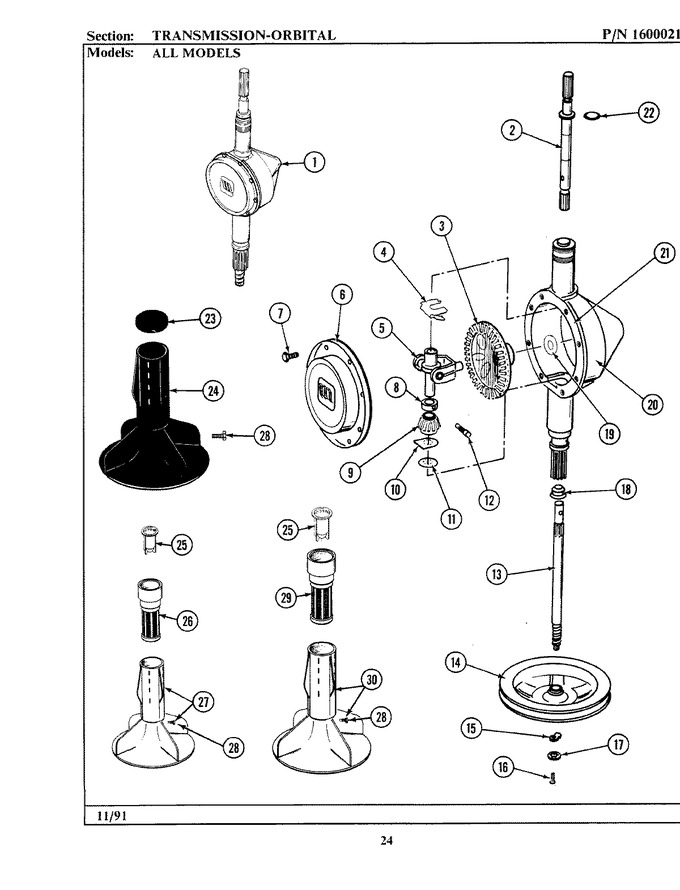

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 206707 | Transmission, Orbital | 10 |
|
- | ||||
| 2 | 207153 | Shaft, Agitator (w/spring) | 10 |
|
- | ||||
| 3 | 206713 | Gear, Bevel | 10 |
|
- | ||||
| 4 | WP215581 | Spring, Agitator Shaft (Replaces: 215581) | 10 |
|
$ 7.47 | ||||
| 5 | 206685 | Block, Torque And Yoke Assembl | 10 |
|
- | ||||
| 6 | 206628 | Cover, Transmission | 10 |
|
- | ||||
| 7 | 215417 | Screw, Transmission Cover | 10 |
|
- | ||||
| 8 | 215415 | Collar, Lower | 10 |
|
- | ||||
| 9 | WPW10221114 | Pinion (Replaces: 215401) | 10 |
|
$ 58.63 | ||||
| 10 | WP215395 | Plate, Clutch (Replaces: 215395) | 10 |
|
Immediately | $ 6.79 | |||
| 11 | WP6-2114830 | Washer, Splined (Replaces: 211483) | 10 |
|
$ 7.05 | ||||
| 12 | WPY206629 | Pin, Collar (Replaces: Y206629) | 10 |
|
$ 7.88 | ||||
| 13 | 215410 | Center Shaft - Larger | 10 |
|
- | ||||
| 14 | WP6-2301530 | Pulley, Drive (Replaces: 211059) | 10 |
|
$ 178.73 | ||||
| 15 | WP211089 | Lug, Stop (Replaces: 211089) | 10 |
|
$ 10.16 | ||||
| 16 | WP912618 | Screw,stop Lug(center Shaft) (Replaces: 211375) | 10 |
|
$ 6.98 | ||||
| 17 | WP22003555 | Washer, Lock (Replaces: 211090) | 10 |
|
$ 19.26 | ||||
| 18 | 206602 | Seal, Lip (center Shaft) | 10 |
|
- | ||||
| 19 | 215394 | Washer, Bevel Gear | 10 |
|
- | ||||
| 20 | 206624 | Housing, Transmission | 10 |
|
- | ||||
| 21 | W10841140 | Silastic,adh.sealant (Replaces: Y058700) | 10 |
|
Immediately | $ 24.92 | |||
| 22 | 210690 | Seal, Rubber | 10 |
|
$ 13.19 | ||||
| 25 | 215733 | Dispensing Cup | 10 |
|
- | ||||
| 28 | 206478 | Screw & Washer For Agitator | 10 |
|
- | ||||
| 30 | 207228 | Agitator W/lock Screw | 10 |
|
$ 101.23 |
