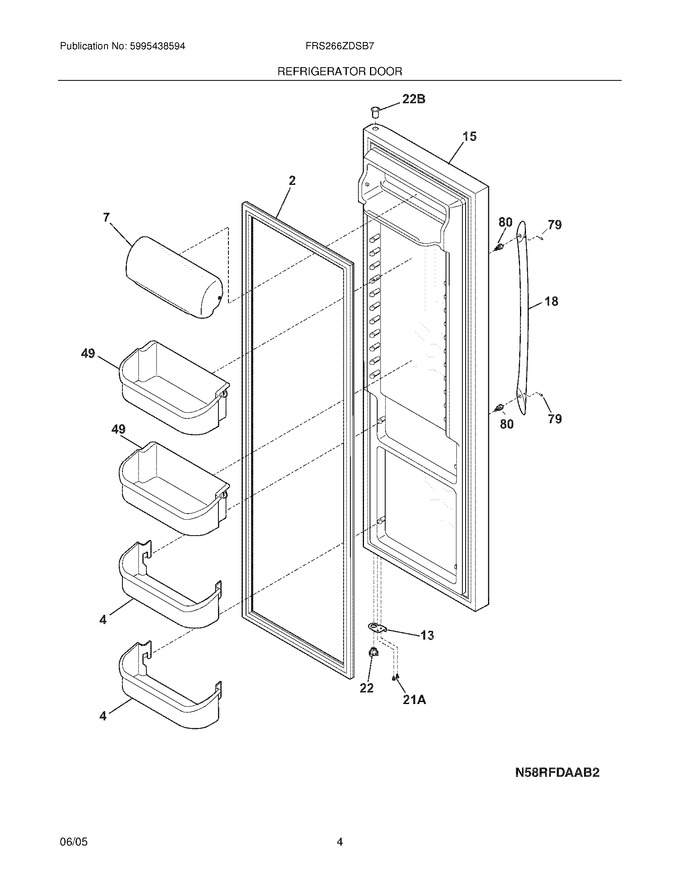

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Freezer Door
05 - Refrigerator Door
07 - Cabinet
09 - Shelves
11 - Controls
13 - System
15 - Ice & Water Dispenser
17 - Ice Container
19 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241786005 | Gasket-refr Door,black ,magnetic (Replaces: 240390605) |
|
Immediately | $ 225.62 | ||||
| 4 | 240323002 | Bin-door,pseudo ,bottom |
|
Immediately | $ 67.21 | ||||
| 7 | 240326203 | Door-dairy |
|
$ 40.37 | |||||
| 13 | 240581905 | Door Stop,black ,ref |
|
$ 60.25 | |||||
| 15 | 241534519 | Door-refr,stainless Steel ,complete Assy |
|
- | |||||
| 18 | 240536805 | Handle-door,stainless Steel ,with Insert,and Set Screw |
|
- | |||||
| 22 | 240328203 | Bearing-hinge,black ,closer |
|
Immediately | $ 27.23 | ||||
| 49 | 240356402 | Bin-door,gallon |
|
Immediately | $ 106.83 | ||||
| 79 | 218755401 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 25.02 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting (Replaces: 218755503) |
|
Immediately | $ 18.60 | ||||
| 21A | 5303323137 | Screw,10-32 X 1/2 (Replaces: 240598401) |
|
$ 11.88 | |||||
| 22B | 240328404 | Bearing-hinge,black ,upper |
|
$ 22.87 |
