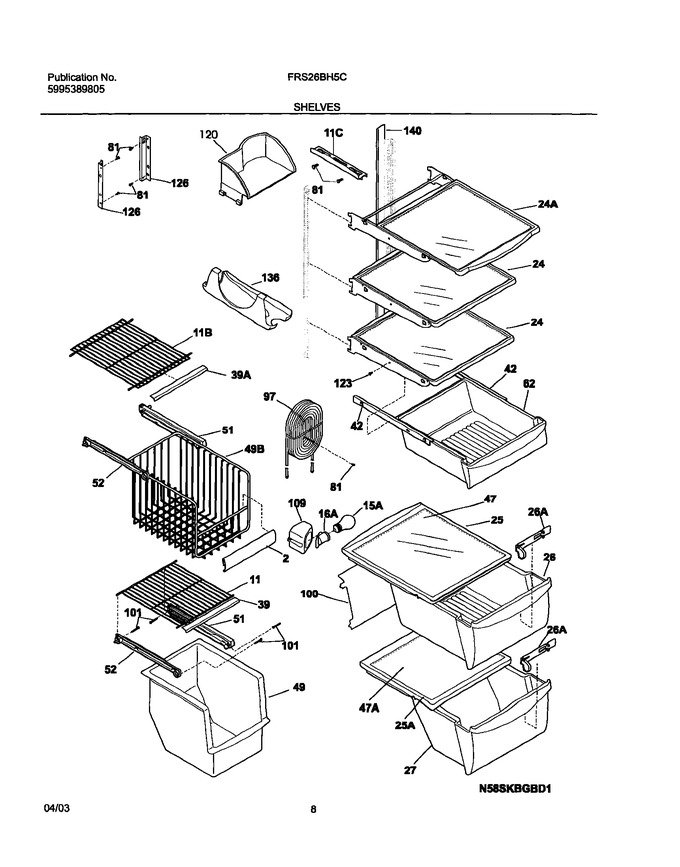

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	240434604		Trim-basket		Appelez-nous	-
11	240338802		Shelf-freezer,flip-up		Appelez-nous	-
24	240355270		Shelf-``spill-safe``,fixed   (Replaces: 240355208)				$ 170.63
25	240350702		Cover-crisper Pan,upper			Immediately	$ 41.92
26	240351061		Pan-crisper,upper   (Replaces: 240351005)			Immediately	$ 110.01
27	240351240		Pan-crisper,lower   (Replaces: 240351205)				$ 203.45
39	240430706		Trim-shelf,11.21`` ,front				$ 81.85
42	240365401		Track,meat Pan Hanger ,lh			Immediately	$ 51.26
42	240356501		Track,meat Pan Hanger ,rh			Immediately	$ 56.70
47	240350649		Insert-pan Cover,glass   (Replaces: 240350633)			Immediately	$ 123.89
49	240564401		Basket-sliding			Immediately	$ 158.90
51	240343002		Hanger-basket,rh				$ 65.22
52	240343102		Hanger-basket,lh				$ 69.77
62	240342830		Pan-meat   (Replaces: 240342806)				$ 85.99
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
97	240545302		Water Tank Assy,coiled Tubing ,front Filter   (Replaces: 240545303)				$ 280.67
100	240326304		Cover-water Tank   (Replaces: 240326302)				$ 73.57
101	218493101		Screw,hex Washer Head `8-18ab X 1-3/4   (Replaces: 218493100)				$ 13.46
109	240351301		Base-crisper Light Socket				$ 15.65
120	240342901		Shelf-ice Cream				$ 39.69
123	215005101		Screw,hanger/rlr Mtg ,8-10 X 0.438   (Replaces: 215005100)				$ 14.89
126	241674401		Channel,auger Mtg ,lh   (Replaces: 218867405)				$ 47.48
126	241674402		Channel,auger Mtg ,rh   (Replaces: 218867406)				$ 43.24
136	240424501		Dispenser-can,white		Appelez-nous	-
140	240430501		Channel,wtr Tube Cover				$ 97.81
11B	240338704		Shelf-freezer,fixed Wire		Appelez-nous	-
11C	240324101		Shelf-pizza				$ 59.91
15A	316538904		Light Bulb/lamp,a-15 ,clear ,40 W ,120 V,miniature   (Replaces: 240436702)			Immediately	$ 20.48
16A	218906802		Socket-light/lamp   (Replaces: 218906801)				$ 17.72
24B	240350150		Shelf-``spill-safe``,cantilever ,sliding   (Replaces: 240350108)				$ 176.70
25A	240350903		Cover-crisper Pan,lower   (Replaces: 240350902)			Immediately	$ 91.99
26A	240362201		Control-humidity				$ 69.46
39A	240430702		Trim-shelf,12.39`` ,front				$ 21.89
47A	240350603		Insert-pan Cover,glass			Immediately	$ 115.52
49B	240530504		Basket-sliding,upper ,full				$ 207.81
F16A	240323102		Harness-wiring		Appelez-nous	-
NI	240362101		Clip-slide,cover-crisper				$ 47.03
NI	240349801		Clip-slide,pan-crisper				$ 20.48
