01 - Backguard Assy


02 - Cabinet Assy-heater Section


03 - Heater Burner And Control Components


04 - Lower Broiler Components


05 - Lower Oven Compnt With Spark Ign


06 - Oven Door Assy


07 - Page 1

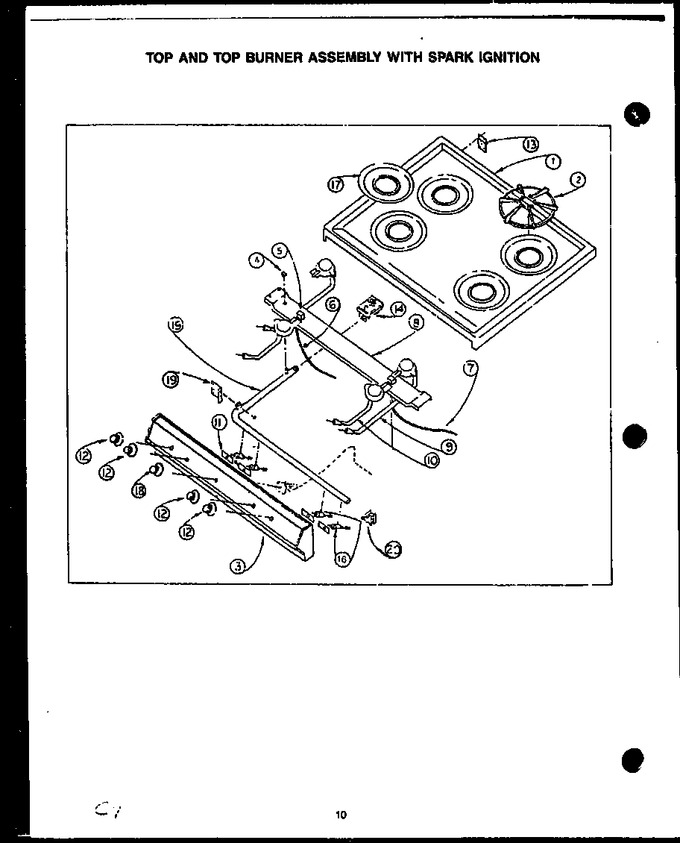

08 - Top & Top Burner Assy With Spark Ign


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	57243H		Main Top - Harvest		Appelez-nous	-
1	57243L		Main Top - Almond		Appelez-nous	-
1	57243W		Main Top - White		Appelez-nous	-
1	57243A		Main Top - Avocado		Appelez-nous	-
1	57243C		Main To - Coffee		Appelez-nous	-
2	57311		Assy,wiring Harness-ho		Appelez-nous	-
3	0310412		Manifold Panel		Appelez-nous	-
4	0088650		Square Nut {j}		Appelez-nous	-
6	Y0056085		Ignitor, Griddle		Appelez-nous	-
7	56083		Thermostat		Appelez-nous	-
8	DE81-05245A		Top Burner Support   (Replaces: 86972)				$ 163.72
9	Y0052750		Burner, Rear		Appelez-nous	-
10	Y0052751		Burner, Front		Appelez-nous	-
11	WP4157180		Switch, Spark Valve   (Replaces: Y0088874)				$ 102.56
12	0057296		Knob, Burner		Appelez-nous	-
13	0088782		Hinge, Main Top		Appelez-nous	-
14	Y0056046		Pressure Regulator, Nat		Appelez-nous	-
15	0056049		Manifold Pipe, Heater		Appelez-nous	-
16	Y0311525		Top Burner Valve		Appelez-nous	-
18	Y0057298		Knob, Thermostat		Appelez-nous	-
19	0086725		Support, Manifold, L.h. {j}		Appelez-nous	-
20	0052754		Bracket, Manifold Support		Appelez-nous	-
NI	Y0057257		Sub 310516, Switch, Oven Light		Appelez-nous	-
