01 - Backguard Assy


02 - Cabinet Assy-heater Section


03 - Heater Burner And Control Components


04 - Lower Broiler Components


05 - Lower Oven Compnt Without Spark Ign


06 - Oven Door Assy


07 - Page 1

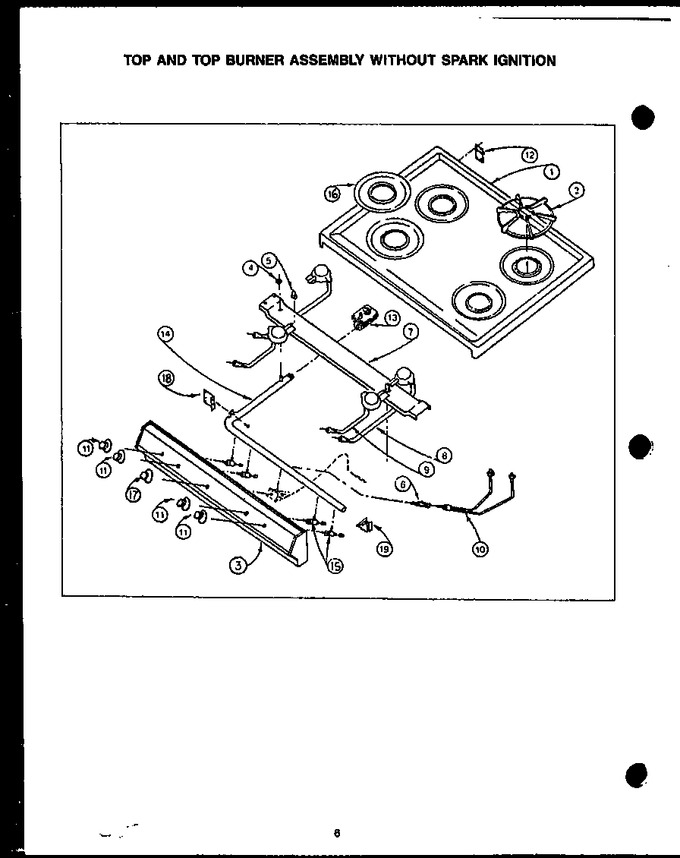

08 - Top & Top Burner Assy Without Spark Ign


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	57243H		Main Top - Harvest		Appelez-nous	-
1	57243L		Main Top - Almond		Appelez-nous	-
1	57243W		Main Top - White		Appelez-nous	-
1	57243A		Main Top - Avocado		Appelez-nous	-
1	57243C		Main To - Coffee		Appelez-nous	-
2	57311		Assy,wiring Harness-ho		Appelez-nous	-
3	0310412		Manifold Panel		Appelez-nous	-
4	0088650		Square Nut {j}		Appelez-nous	-
5	57313		Assy,wiring Harness-ba		Appelez-nous	-
6	0088789		Filter		Appelez-nous	-
7	DE81-05245A		Top Burner Support   (Replaces: 86972)				$ 163.72
8	Y0052750		Burner, Rear		Appelez-nous	-
9	Y0052751		Burner, Front		Appelez-nous	-
10	0088083		Pilot Harness		Appelez-nous	-
11	0057296		Knob, Burner		Appelez-nous	-
12	0088782		Hinge, Main Top		Appelez-nous	-
13	Y0056046		Pressure Regulator, Nat		Appelez-nous	-
14	0056049		Manifold Pipe, Heater		Appelez-nous	-
15	Y0311525		Top Burner Valve		Appelez-nous	-
17	Y0057297		Knob, Thermostat		Appelez-nous	-
18	0086725		Support, Manifold, L.h. {j}		Appelez-nous	-
19	0052754		Bracket, Manifold Support		Appelez-nous	-
NI	Y0057257		Sub 310516, Switch, Oven Light		Appelez-nous	-
