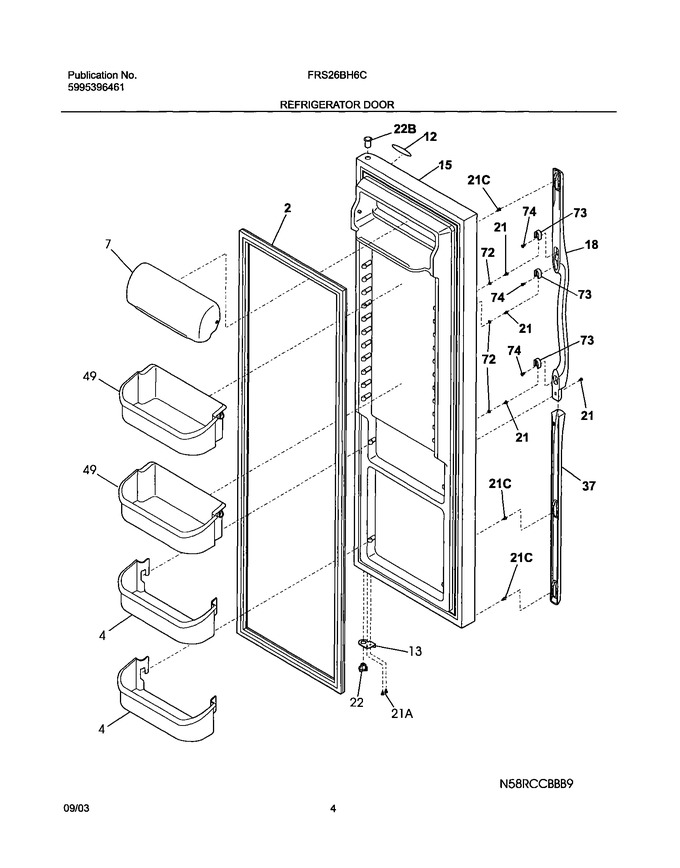

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786005		Gasket-refr Door,black ,magnetic   (Replaces: 240390605)			Immediately	$ 225.62
4	240323002		Bin-door,pseudo ,bottom			Immediately	$ 67.21
7	240326203		Door-dairy				$ 40.37
12	240449707		Nameplate,black				$ 31.05
13	240581905		Door Stop,black ,ref				$ 60.25
15	240451980		Door-refr,stainless Steel ,		Appelez-nous	-
18	240359103		Handle-door,black ,rh		Appelez-nous	-
21	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
22	240328201		Bearing-hinge,closer			Immediately	$ 17.72
37	240359203		Trim-handle`30.13`` ,black ,lower		Appelez-nous	-
49	240356402		Bin-door,gallon			Immediately	$ 106.83
72	240421701		Button-handle Mtg,dovetail				$ 14.81
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.09
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598401)				$ 11.88
21C	240521302		Screw,no.8-18 X 3/4				$ 8.19
22B	240328403		Bearing-hinge,upper				$ 14.85
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27

    View Diagram in Separate Window       Print Part List
