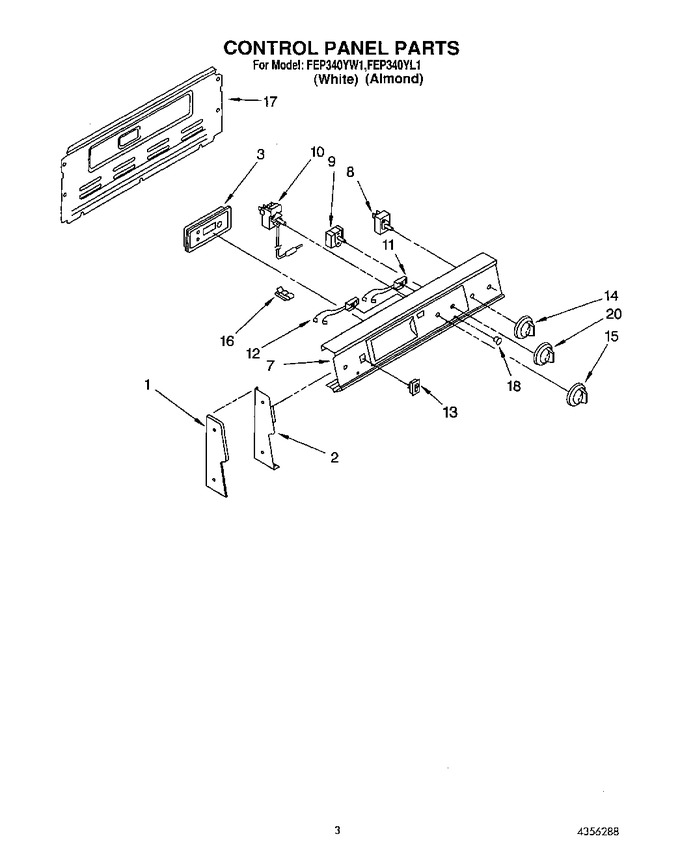

02 - Control Panel


03 - Oven


04 - Door And Drawer


05 - Wiring Harness, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3183465		End Cap L.h.		Appelez-nous	-
1	3162918		Screw, 10-16 X 3/8 (4)		Appelez-nous	-
1	3183466		End Cap R.h.		Appelez-nous	-
2	3184353		Shield (lh-white/almond)		Appelez-nous	-
2	3184354		Shield (rh-white/almond)		Appelez-nous	-
2	WP681414		Shield (screw, 10 X 1/2 (2))   (Replaces: 343641)			Immediately	$ 7.07
3	3184558		Timer, Clock (oven Control Assembly)		Appelez-nous	-
3	WP965173		Timer, Clock (screw, 8a X 3/8 (2))   (Replaces: 246132)			Immediately	$ 9.65
7	3183473		Panel, Control		Appelez-nous	-
7	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.07
8	5500-287		Switch, Infinite (6`` Element (2))   (Replaces: 3148951)			Immediately	$ 47.15
8	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 6.61
8	5500-287		Switch, Infinite (8`` Element (2))   (Replaces: 3148953)			Immediately	$ 47.15
9	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 6.61
9	3150430		Switch, Selector				$ 66.71
10	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
10	661150		Thermostat, Oven		Appelez-nous	-
11	314031		Light, Indicator (oven)				$ 62.88
12	3150662		Light, Indicator (surface Unit)		Appelez-nous	-
13	WP4314961		Rocker Switch (white/almond)   (Replaces: 3148564)				$ 80.53
14	WP3149983		Knob, (4) (infinite Switch) (white/almond)   (Replaces: 3149983)				$ 20.91
15	3149987		Knob (therm) (white/almond)				$ 25.12
16	313570		Tube Clip		Appelez-nous	-
17	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.07
17	313195		Rear Cover		Appelez-nous	-
18	313101		Lens, Amber (2)		Appelez-nous	-
20	3149984		Knob (selector) (white/almond)		Appelez-nous	-
