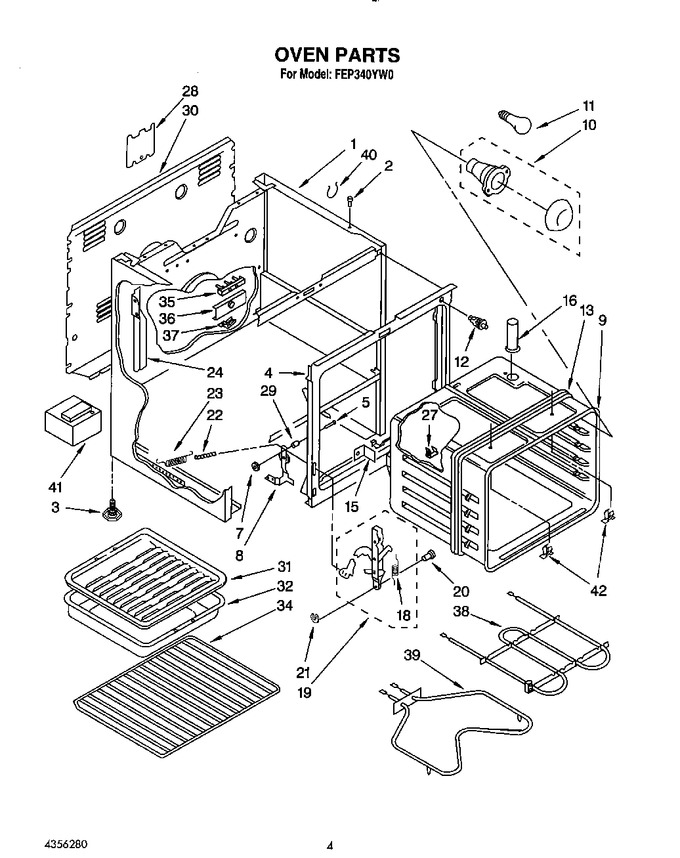

04 - Oven


05 - Door And Drawer


06 - Wiring Harness, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Main Chassis (screw 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.07
1	330090		Main Chassis (almond)		Appelez-nous	-
1	330086		Main Chassis (white)		Appelez-nous	-
2	238614		Bumper, Cooktop (2)				$ 72.68
3	WPW10058460		Leg, Leveling (4)   (Replaces: 3150150)			Immediately	$ 7.07
4	3150537		Screw (1)		Appelez-nous	-
4	311056		Screw (2)		Appelez-nous	-
4	3172204		Frame, Front		Appelez-nous	-
5	307985		Pin, Hinge (2)				$ 29.54
7	308306		Pushnut (2)		Appelez-nous	-
8	327891		Hinge (l.h.)		Appelez-nous	-
8	327890		Hinge (r.h.)		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
9	311056		Screw (3)		Appelez-nous	-
9	3176611		Oven (30`` Conv.)		Appelez-nous	-
10	W11594027		Socket Assembly   (Replaces: 3150505)			Immediately	$ 78.31
11	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
12	310345		Switch, Door				$ 94.86
13	309107		Seal, Heat				$ 63.50
15	311220		Bracket, Oven (mounting)		Appelez-nous	-
15	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
16	9755804		Vent, Oven   (Replaces: 3169143)				$ 111.31
16	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
18	308207		Spring, Stop		Appelez-nous	-
19	329712		Channel, Arm (2)		Appelez-nous	-
20	WP307986		Hinge Pin (2)   (Replaces: 307986)				$ 11.78
21	307594		Ring, Retainer (2)		Appelez-nous	-
22	308127		Spring, Door (2)				$ 11.75
23	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 10.94
24	WP681414		Support, Channel (screw, 10-16 X 1/2 (4))   (Replaces: 343641)			Immediately	$ 7.07
24	313196		Support, Channel (l.h.)		Appelez-nous	-
24	313197		Support, Channel (r.h.)		Appelez-nous	-
27	98005642		Clip, Bulb (2)   (Replaces: 313382)			Immediately	$ 74.64
28	307972		Plate, Service		Appelez-nous	-
28	WP681414		Screw (2)   (Replaces: 343641)			Immediately	$ 7.07
29	309111		Snubber, Door (2)		Appelez-nous	-
30	3148975		Cover, Rear		Appelez-nous	-
30	WP681414		Screw (8)   (Replaces: 343641)			Immediately	$ 7.07
31	4396923		Grid, Broiler   (Replaces: 3147563)			Immediately	$ 52.04
32	4396923		Pan, Broiler   (Replaces: 3169076)			Immediately	$ 52.04
34	308173		Oven Rack (2)		Appelez-nous	-
35	98884		Screw (2)		Appelez-nous	-
35	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 27.12
35	WP112432		Nut (2)   (Replaces: 112432)				$ 7.16
36	3150190		Bracket, Service		Appelez-nous	-
36	WP681414		Screw (2)   (Replaces: 343641)			Immediately	$ 7.07
37	WP681414		Screw   (Replaces: 690989)			Immediately	$ 7.07
37	308498		Ground Strap		Appelez-nous	-
37	313660		Clip		Appelez-nous	-
38	3150532		Screw, 10-32 X 7/16 (2)		Appelez-nous	-
38	WP660579		Element, Broil   (Replaces: 660579)				$ 140.80
39	WP308180		Element, Bake   (Replaces: 661170)				$ 96.92
39	3150532		Screw, 10-32 X 7/16 (2)		Appelez-nous	-
40	16515		Clip, Harness   (Replaces: 313438)				$ 17.60
41	312804		Block, Balance		Appelez-nous	-
41	340184		Screw 10-16 X 11/2				$ 12.10
42	8273888A		Anti-tip Kit   (Replaces: 814148)				$ 27.96
42	309961		Insulation, Oven Wrap		Appelez-nous	-
42	3169107		Plug, Button (2)		Appelez-nous	-
